3He·INSERT
300 mK Physical Property Analysis System·Cold Probe
Paired with the 1.6 K low-temperature magnet system and ‘One-shot’ cooling method, this system provides comprehensive physical property analysis (electrical, specific heat, magnetism, etc.) at 300 mK.
< 300 mK
Base Temperature
70+ Hours
Base Temperature Hold Time
±1.2 mK
Temperature Fluctuation
∅30/ ∅50
Probe Outer Diameter
360°
Rotatable Measurement Module
40 GHz
Customized RF Cable
Operating Time
100+ Hours Continuous Operation
1.5 Hours Recovery Time
Cooling Specifications
mK-level outstanding temperature stability
Optimized for Kelvinion series controllers
±0.2 mK @1.2 K
Active Control · Temperature Fluctuation
±1.2 mK @268 mK
Non-Controlled Temperature State

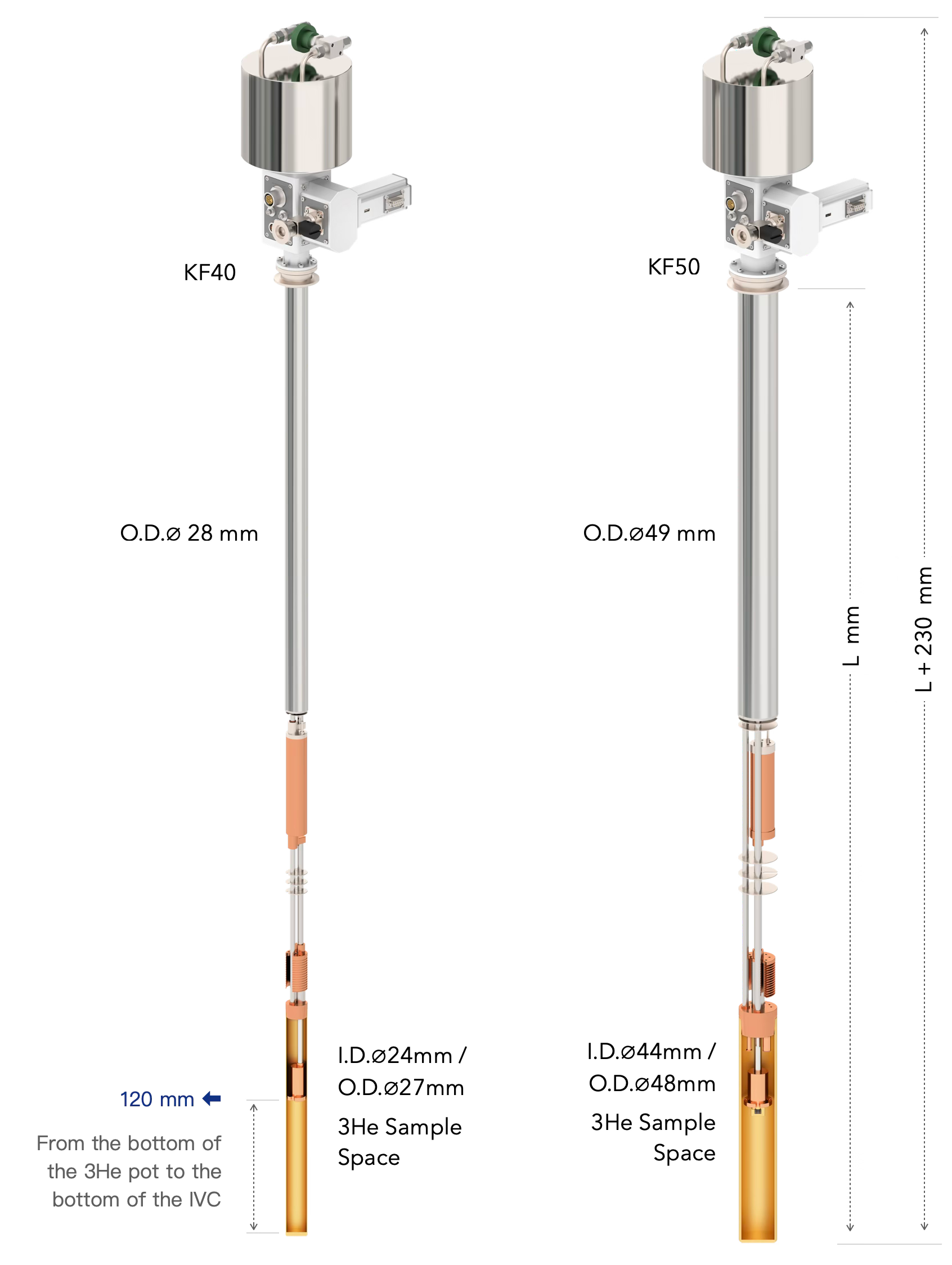

Dimensions
∅28 mm / ∅49 mm
Compatible with Mainstream Sample Space
Specifications
Various outer diameters for flexible selection
3He Probes ➠
3He·INSERT.30
3He·INSERT.50
1
Chamber Size
∅ 30 mm
∅ 50 mm
2
Operating Range
300 mK ~ 300 K
3
Base Temperature
Without Thermal Load
Below 300 mK
4
Temperature Stability
Below 1.5 K:
Better than ± 1 mK
Above 1.5 K:
Better than ± 1 mK
5
Cooling Power
@ 350 mK
Cooling Power Greater than 50 µW
6
Hold Time @300mK
Without Thermal Load
≥ 60 hours
50 µW Thermal Load
≥ 6 hours
7
Temperature Sensor
3 Sensors
8
Magnetic Field Compatibility
Tested Max Magnetic Field
18 T
9
Wiring
Standard
12 pairs of DC twisted pairs; 2 coaxial lines;
Optional
RF semi-rigid lines;
10
Sample Space
Diameter
I.D. ∅24 mm
Length
>120 mm
Diameter
I.D. ∅44.5 mm
Length
>120 mm
11
Net Weight
4 kg
6.6 kg
12
Packaging Dimensions
L 180cm × W 25cm × H 24cm
13
Compatible with Cryogenic System
MultiFields-ColdTUBE, Oxford-TeslatronPT, CryoPride-CPMS, Cryogenic-CFMS, etc.
Physical Property Measurement · Base Framework
360° Sample Rotation for
Free Exploration of
Property-Field Angular
Dependence
Closed-loop Rotary Control
Motor combined with a low-temperature
in situ angle sensor to achieve 0.001°
closed-loop resolution
Temperature Control
Kelvinion Temperature Control
8 temperature display channels, 2
temperature control channels,
supports precise temperature control below 300 mK
Details >
Details >

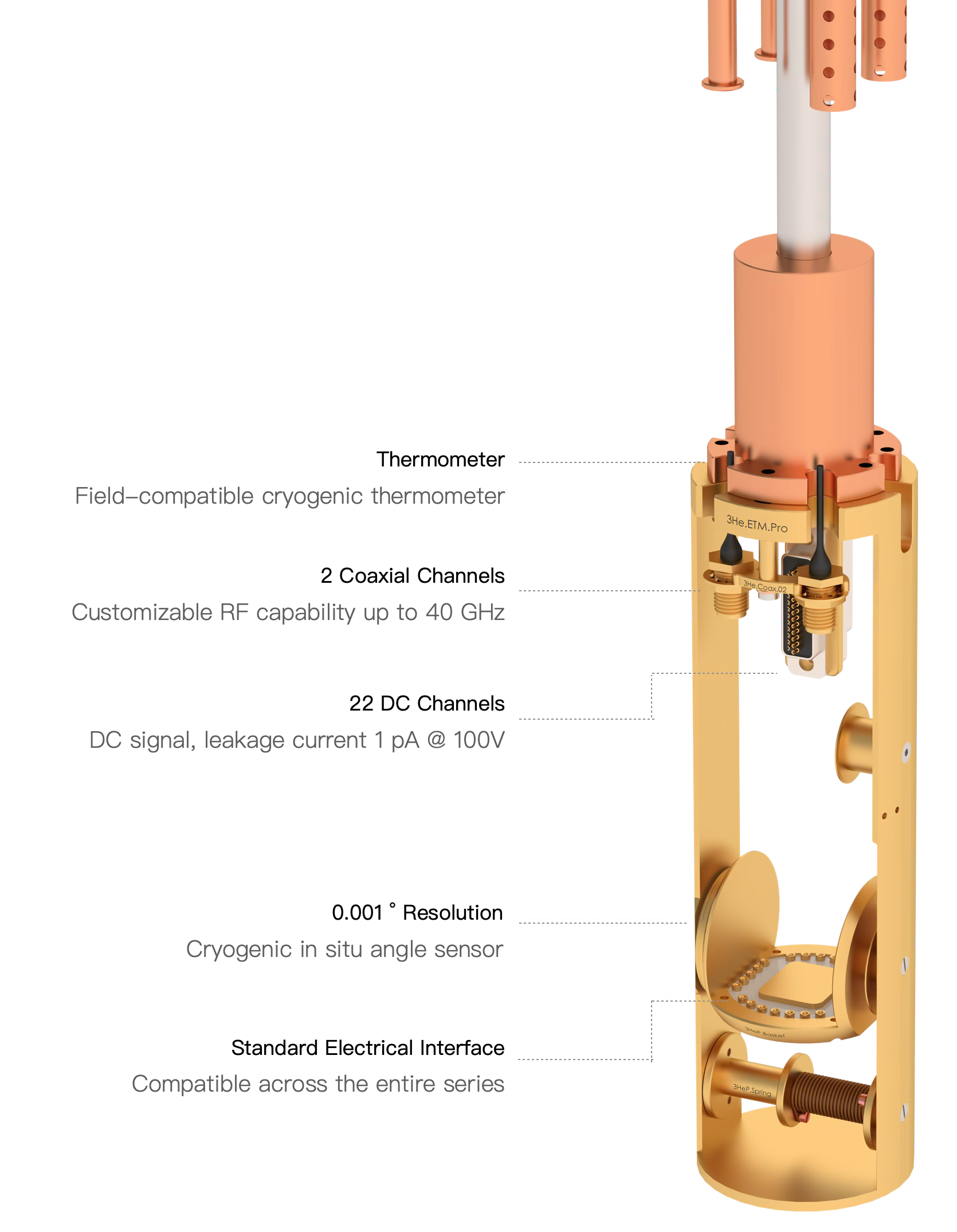

Physical Property Measurement Modules
300 mK Measurement Modules Available
Rotating Electrical
Transport Module
24-Pin Rotating
Electrical Feedthrough
Cryogenic In-Situ Angle Sensor
Dual-Axis Rotating
Electrical Transport
Module
Full Spherical Coverage with
Theta & Phi in Spherical
Coordinates
Specific Heat
Measurement
High-Precision
Measurement at 300 mK
Thermal Transport
Measurement
Thermal Conductivity &
Thermoelectric Power
Measurements Compatible with
Thin Films and Bulk Materials
Details >
Details >
Details >
Details >
