Cryogenic Motion

Cryogenic Motion · Modules

Nanometer Precision at Ultra-Low Temperatures

Full Coverage of Extreme Operating Environments: 10 mK, 35 T, and 2 × 10⁻¹¹ mbar;

A Complete Motion Platform Portfolio for Every Degree of Freedom.

Driving Line Resistance

100 Ω

No line resistance constraints, allowing hassle-free use of low-heat-leak cryogenic cables.

Displacement Sensor

1 μW

Ultra-low self-heating configuration, enabling closed-loop control at 10 mK.

Closed-Loop Controller

6 Channels

Multi-channel control for greater flexibility.

16 mm Series

Dimensions
(16 mm × 16 mm × thickness)

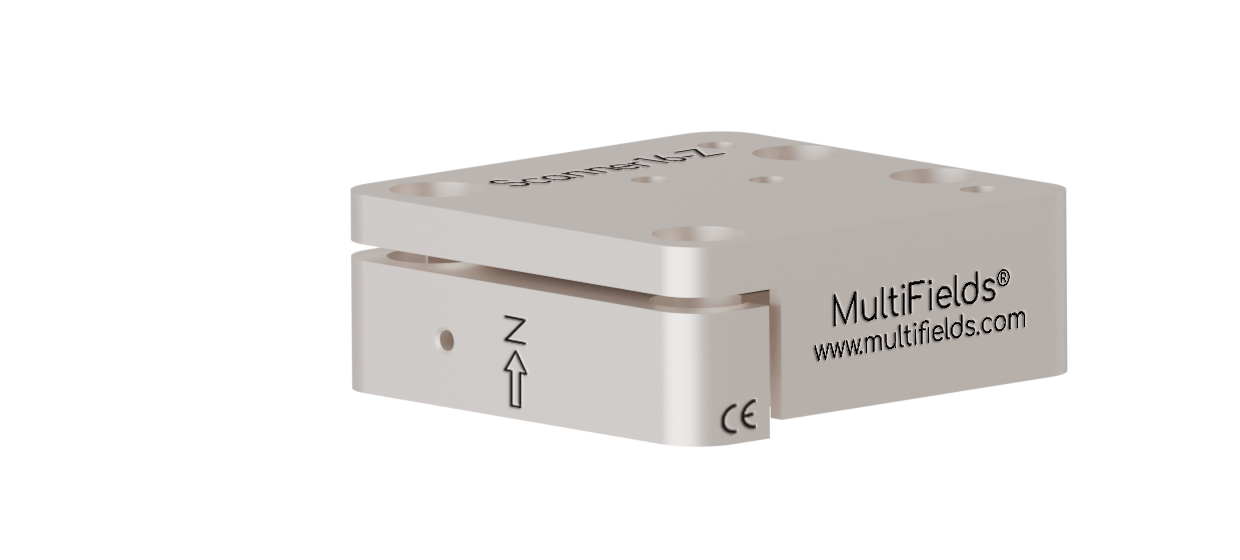

Scanner16-z

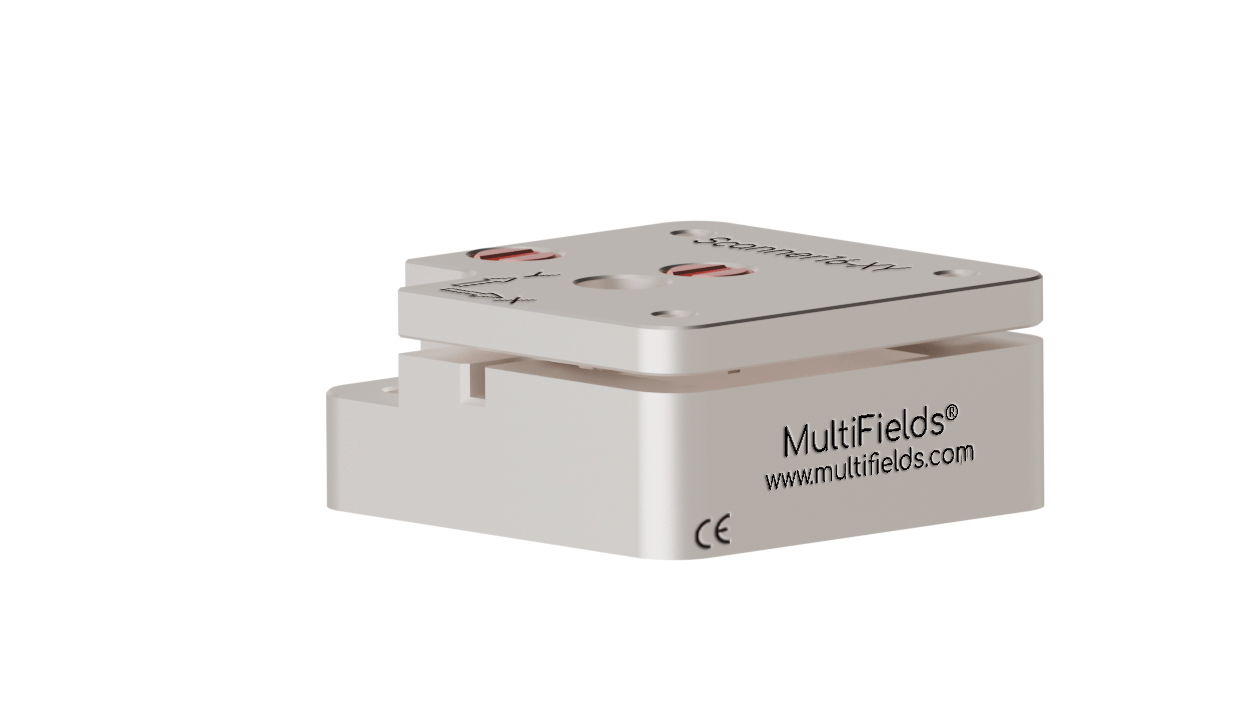

Scanner16-xy

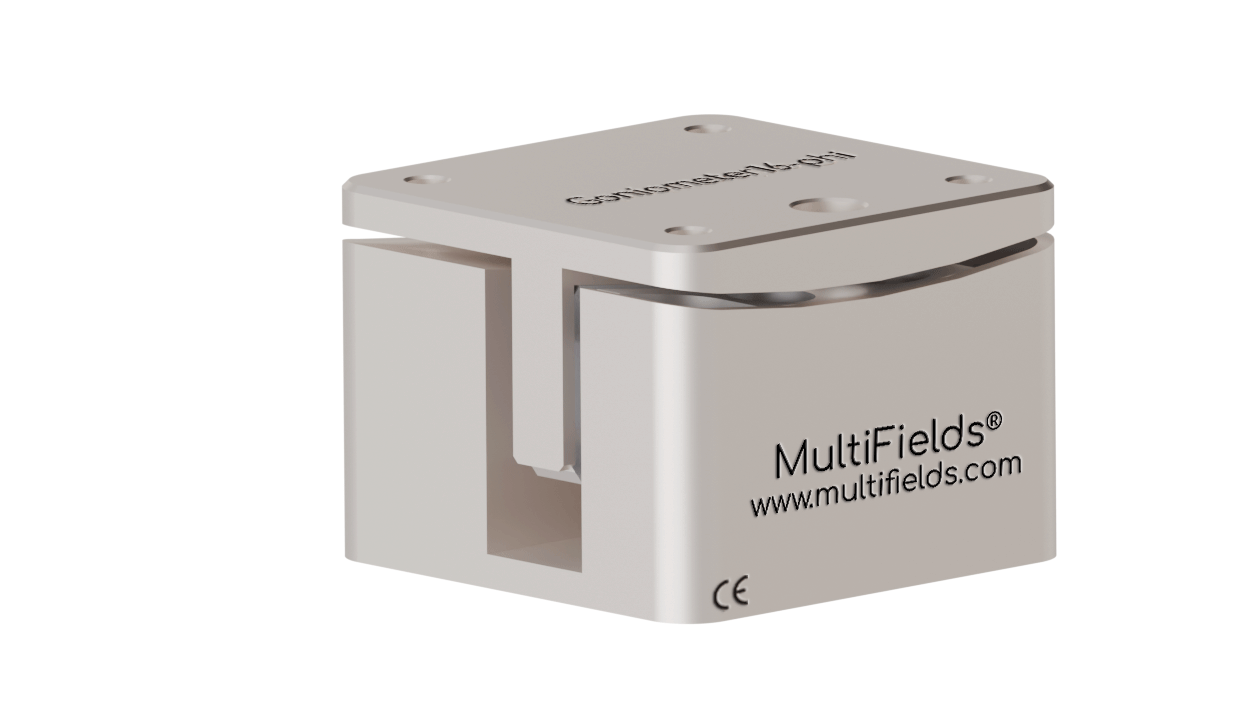

Gionometer16

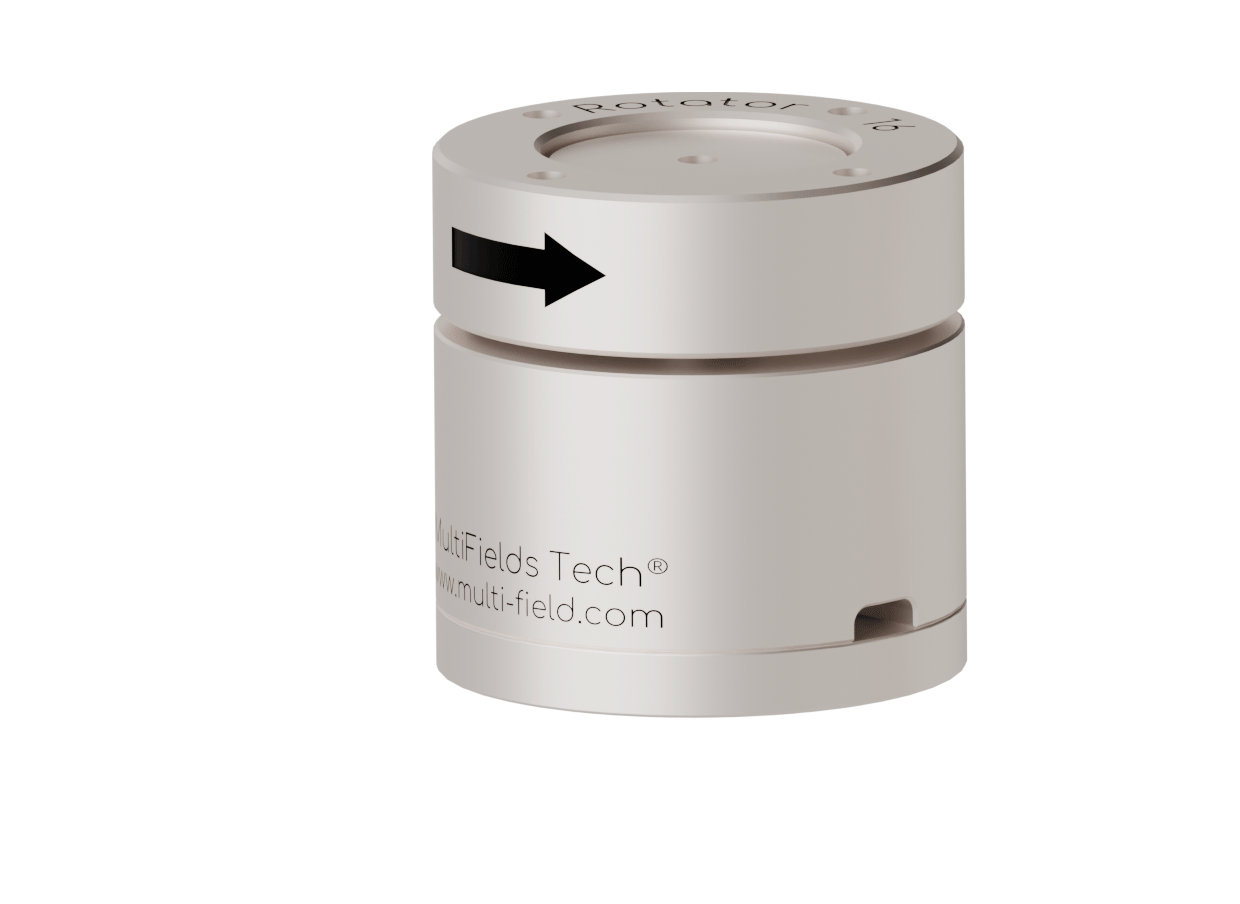

Rotator16
旋转运动

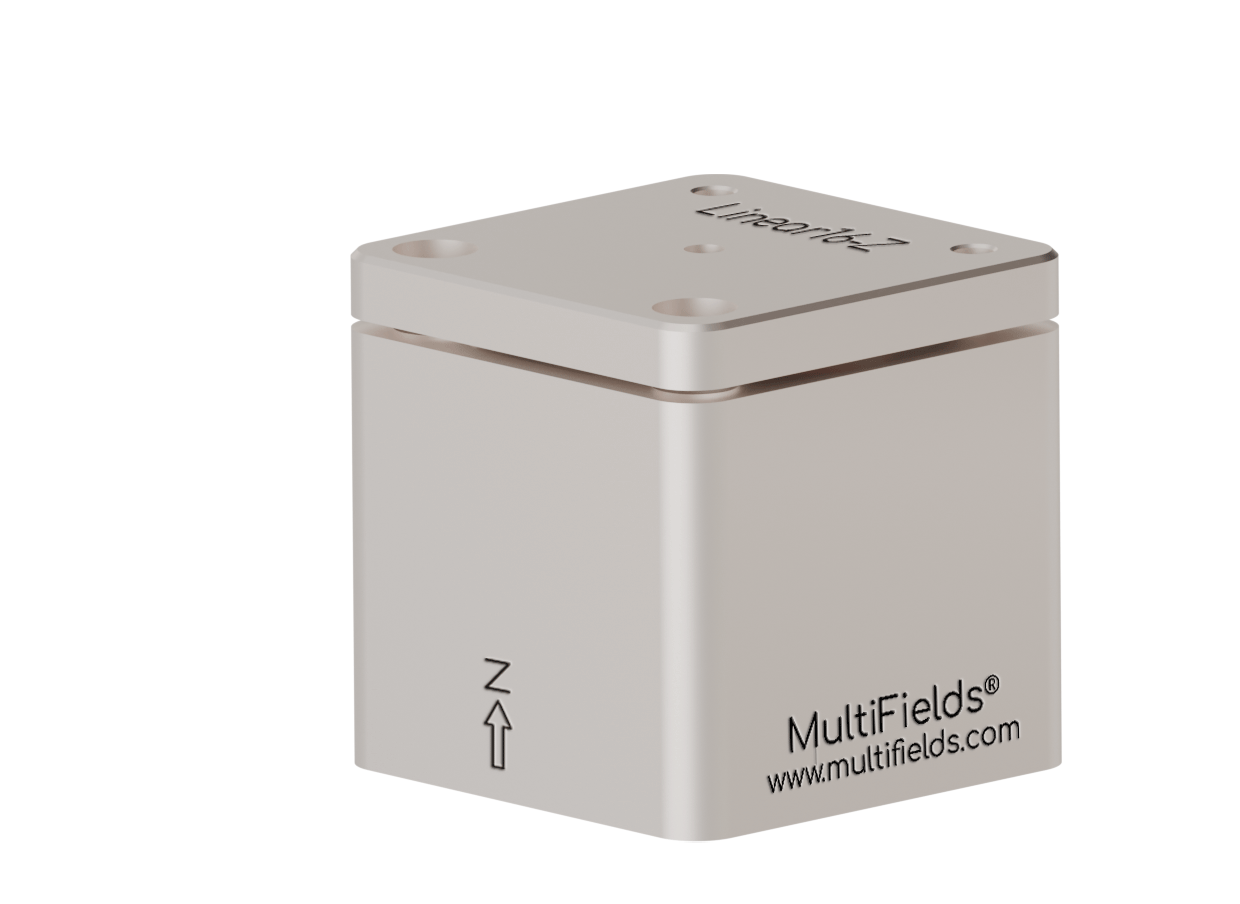

Linear16-z

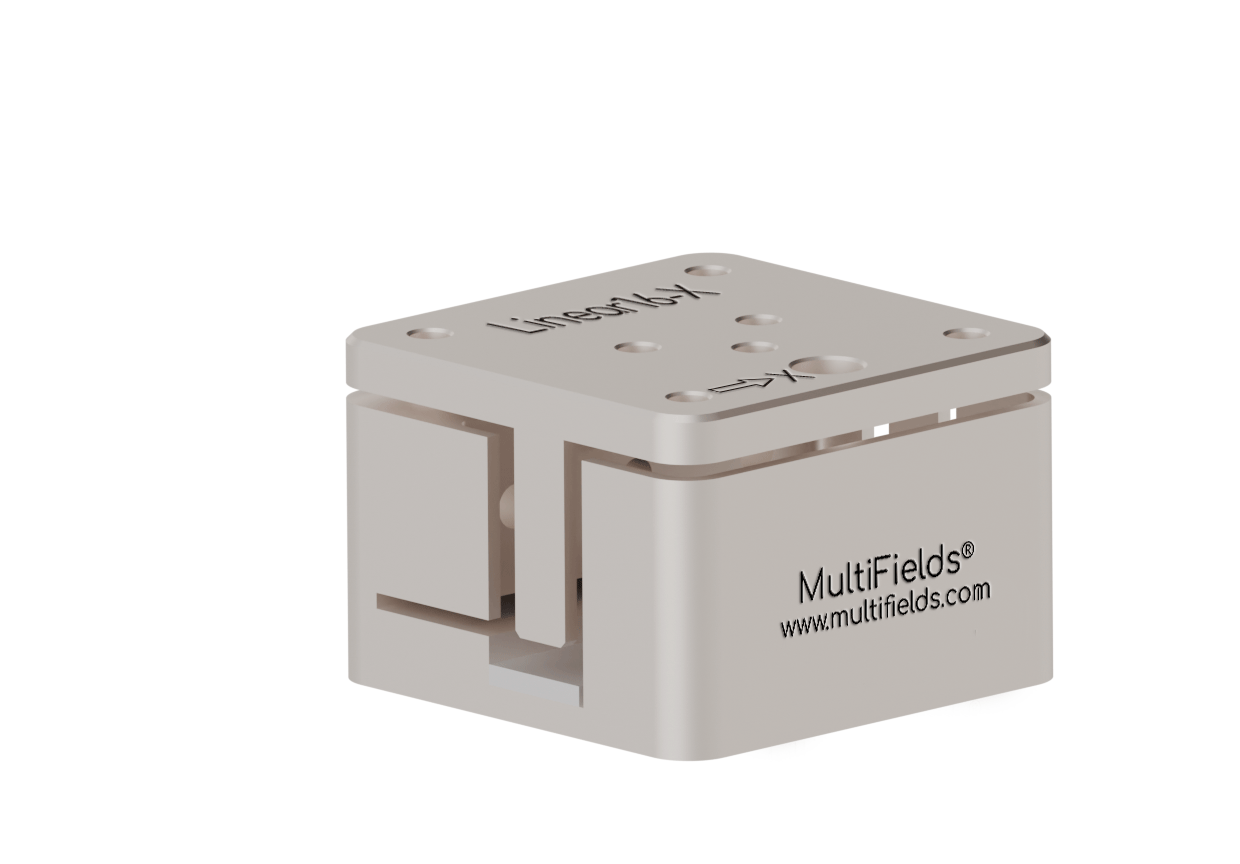

Linear16-x

25 mm Series

Dimensions
(25 mm × 25 mm × thickness)

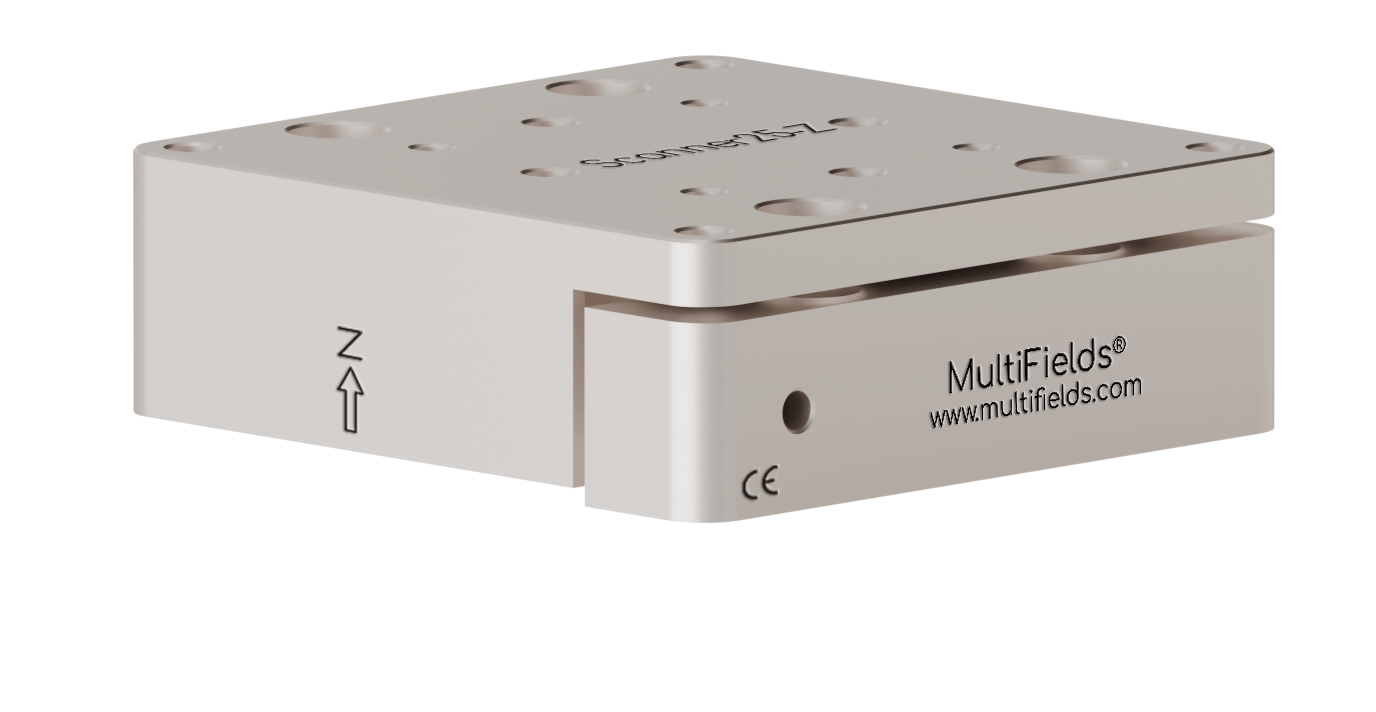

Scanner25-z

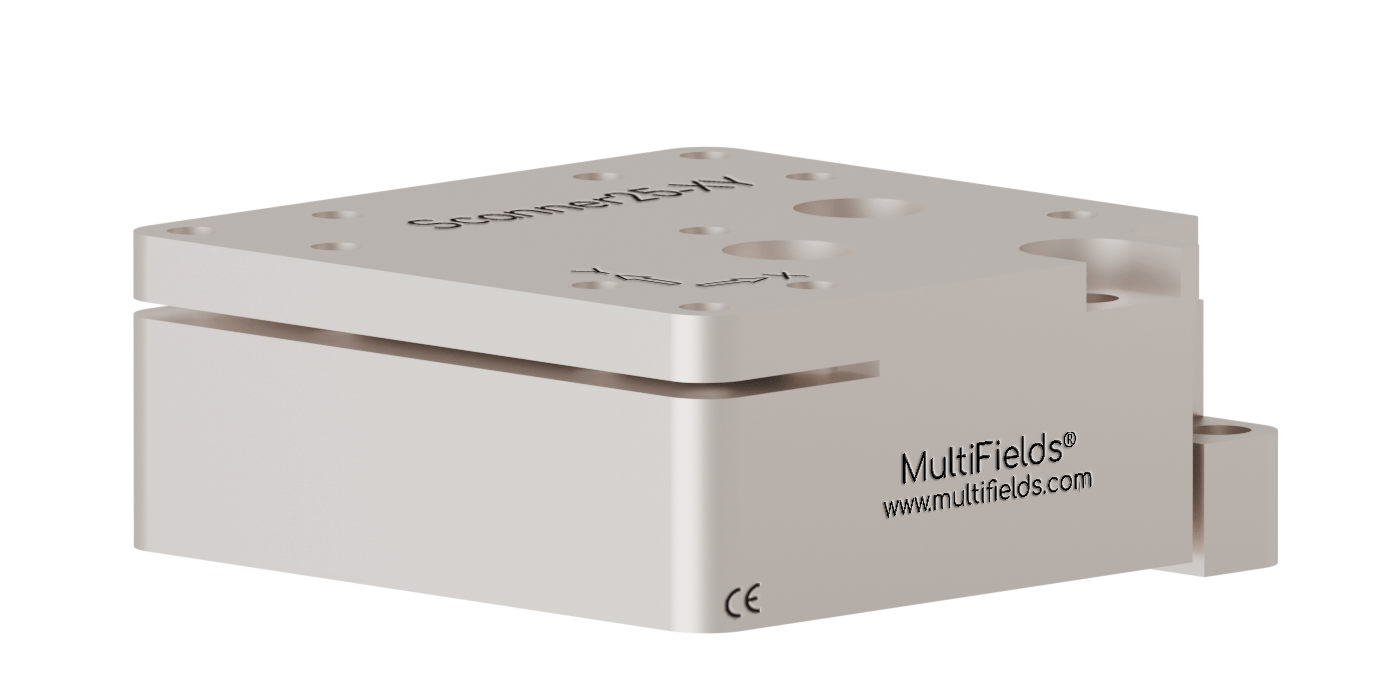

Scanner25-xy

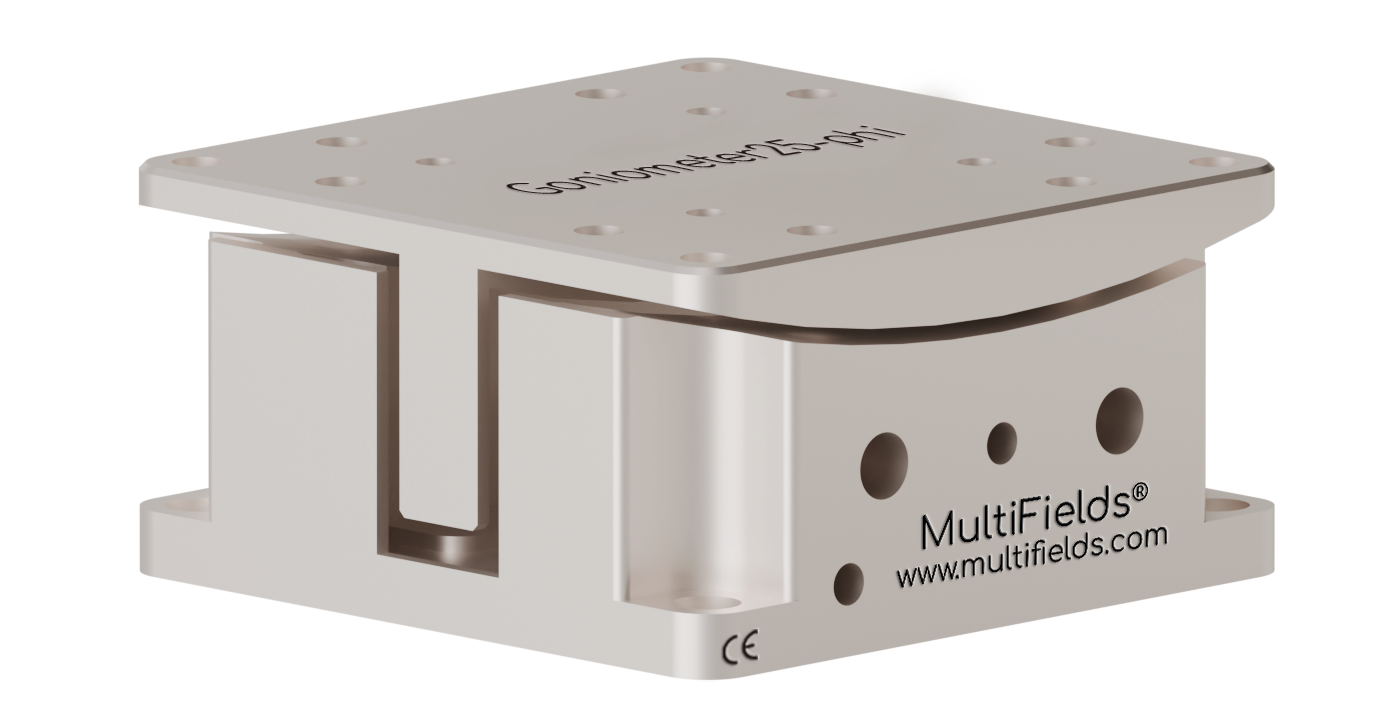

Gionometer25

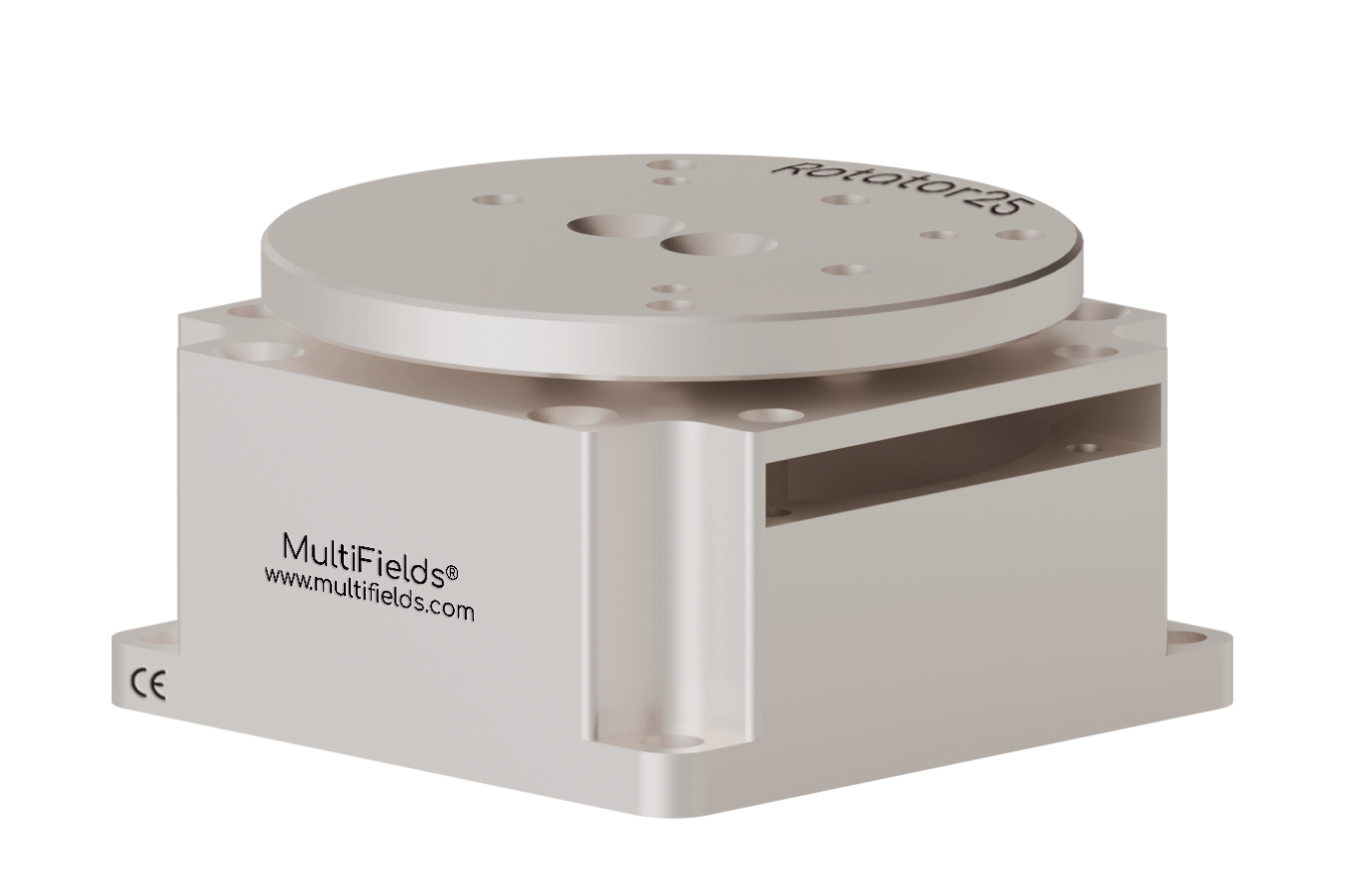

Rotator25

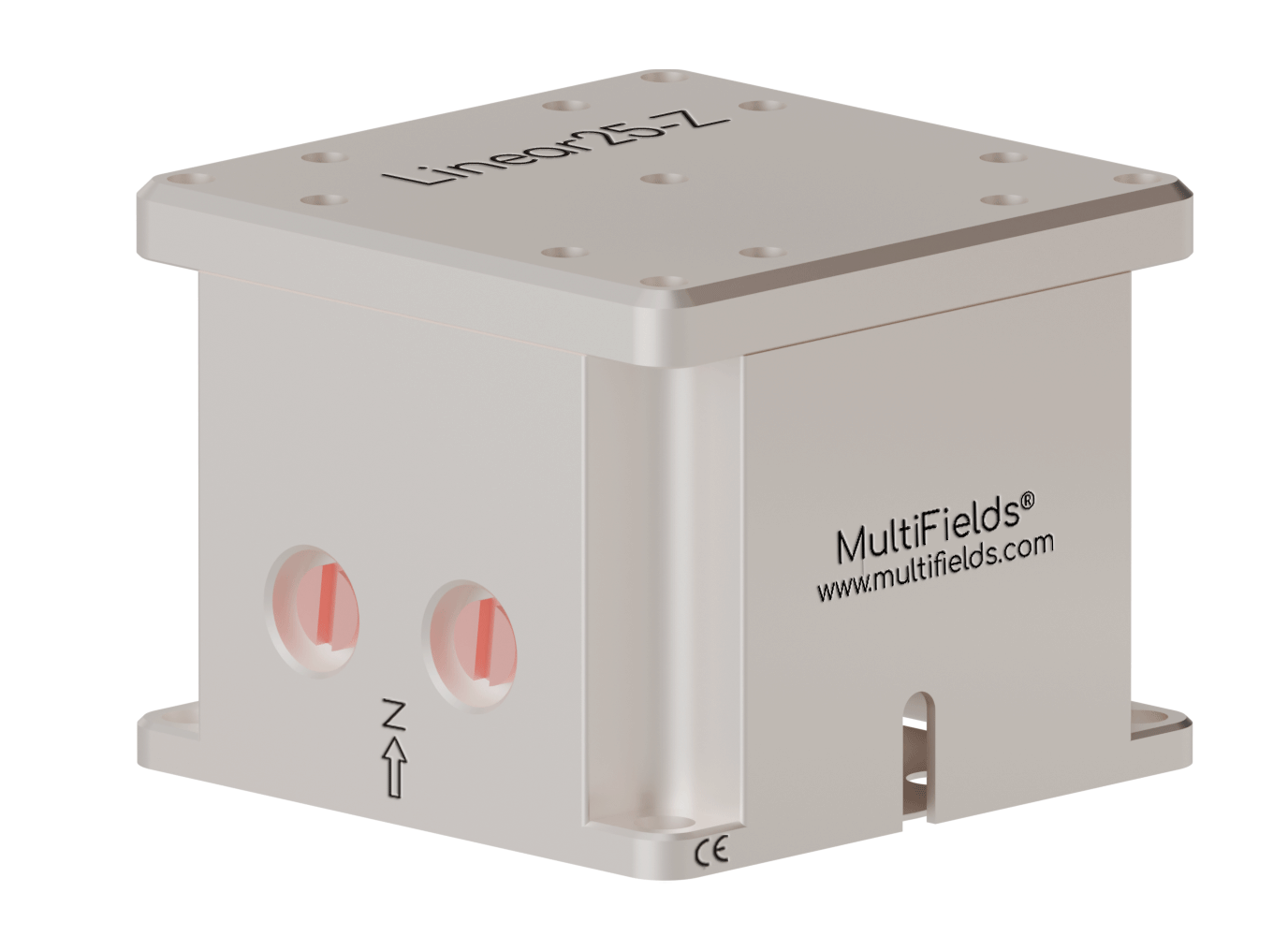

Linear25-z

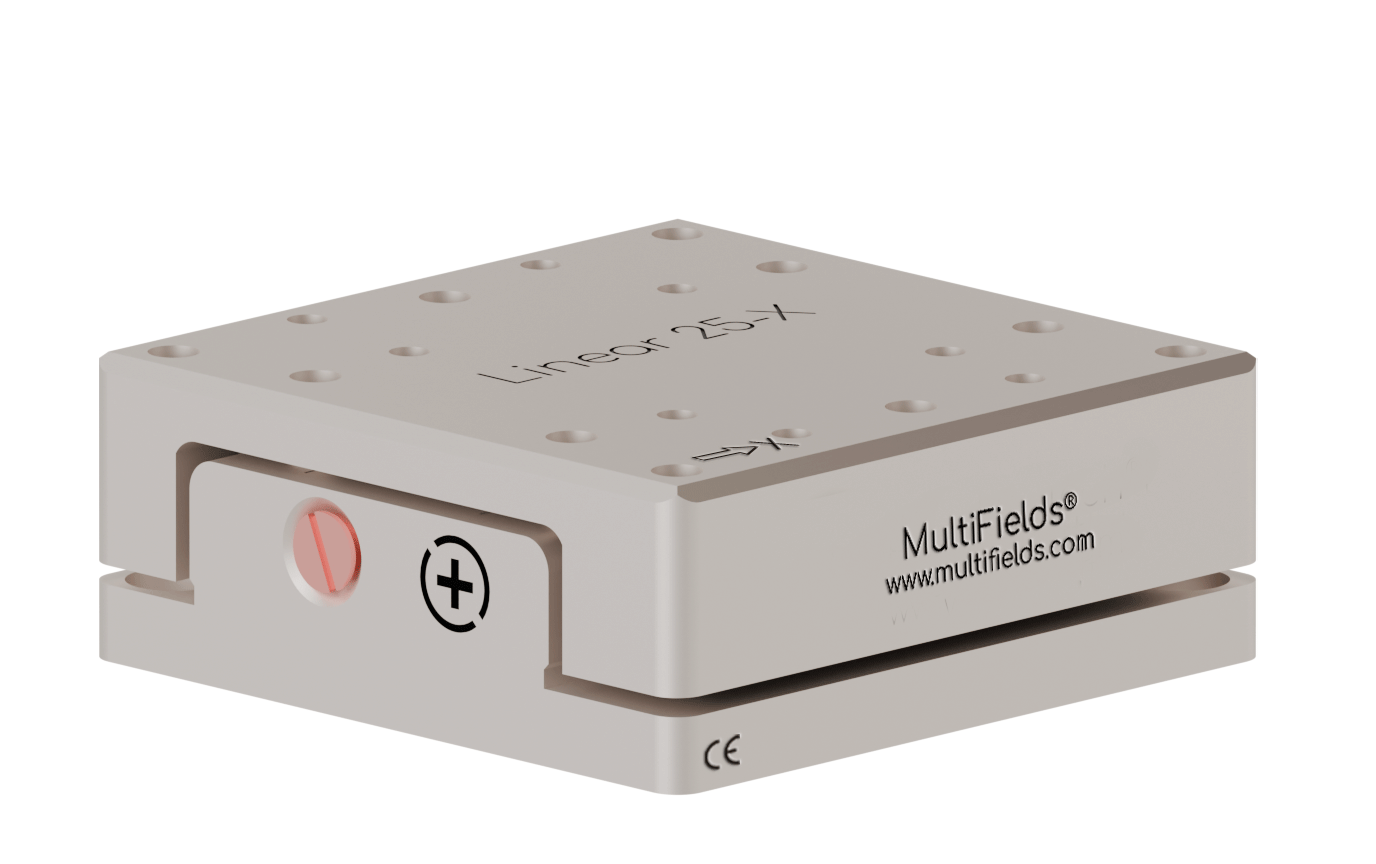

Linear25-x

35 mm Series

Dimensions
(35 mm × 35 mm × thickness)

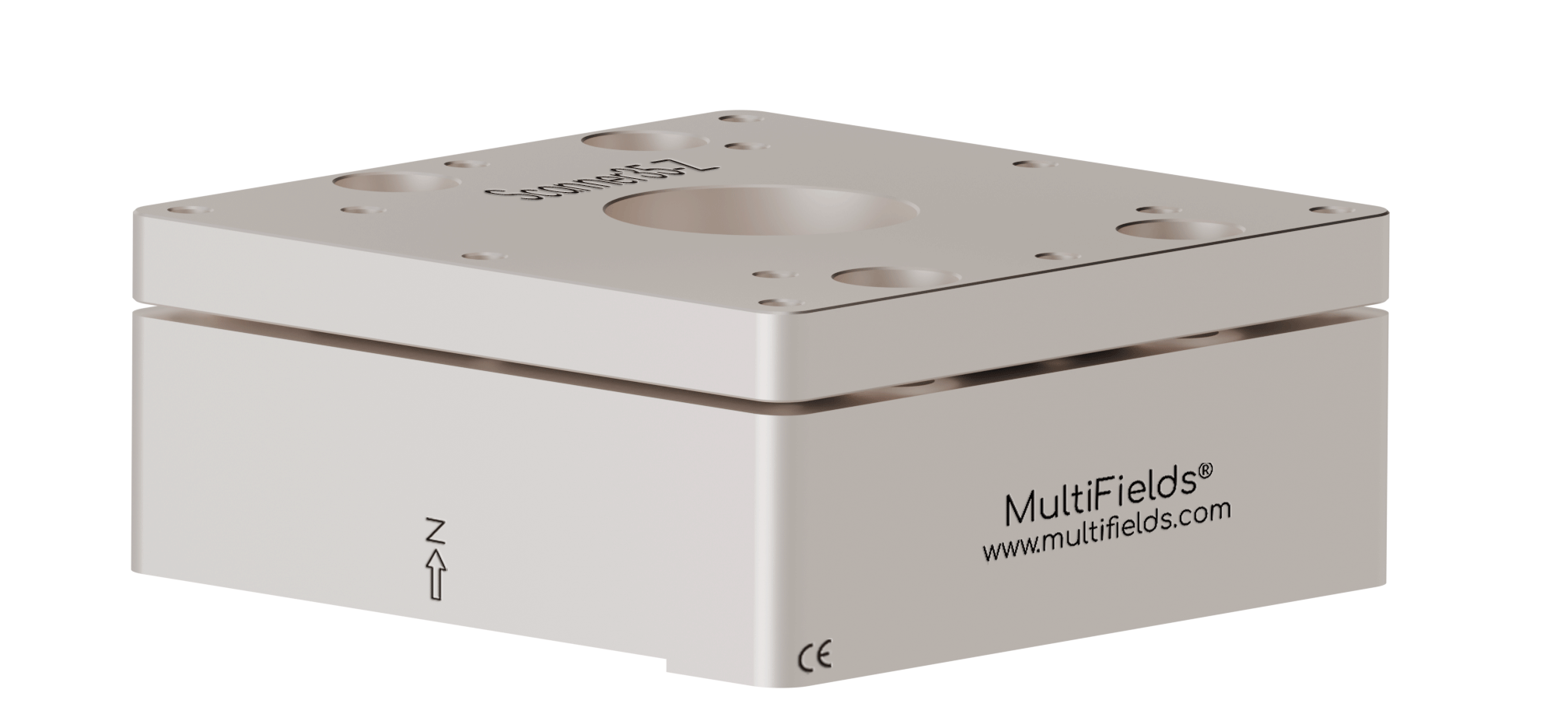

Scanner35-z

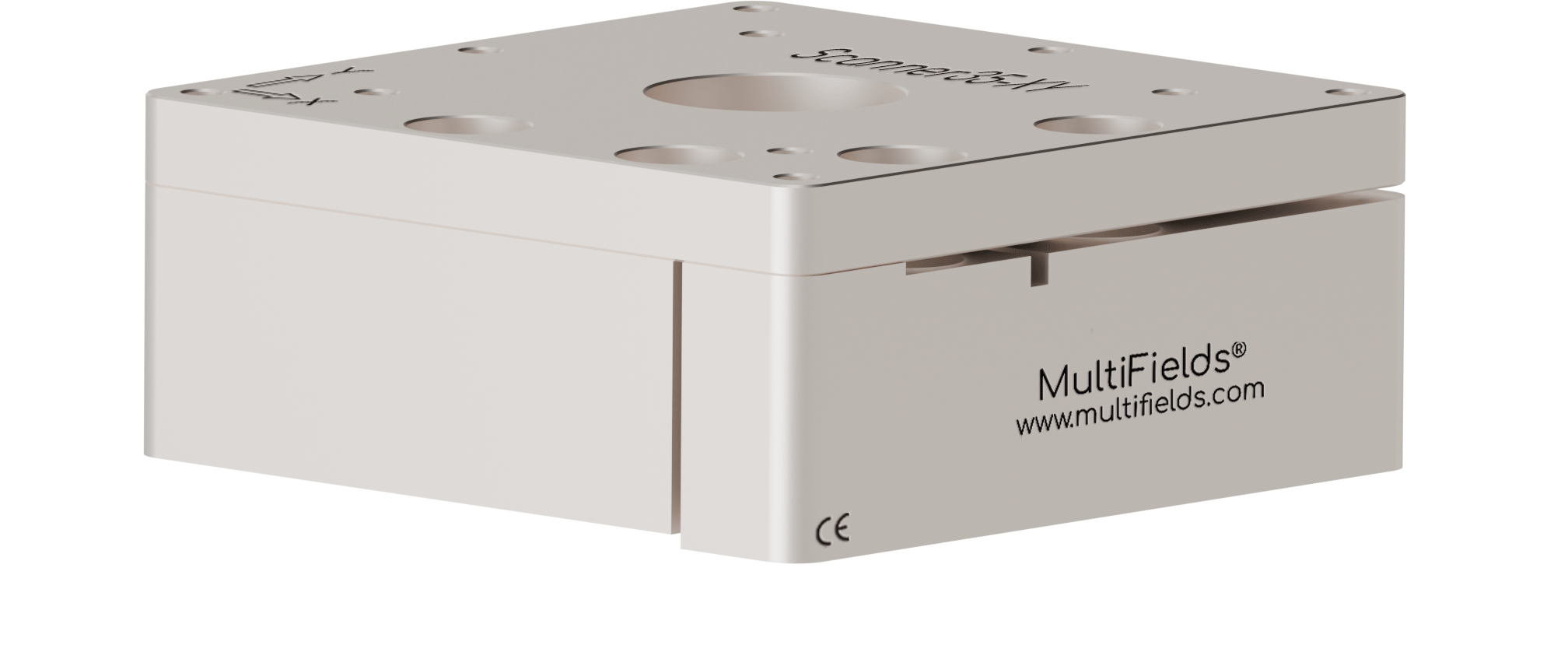

Scanner35-xy

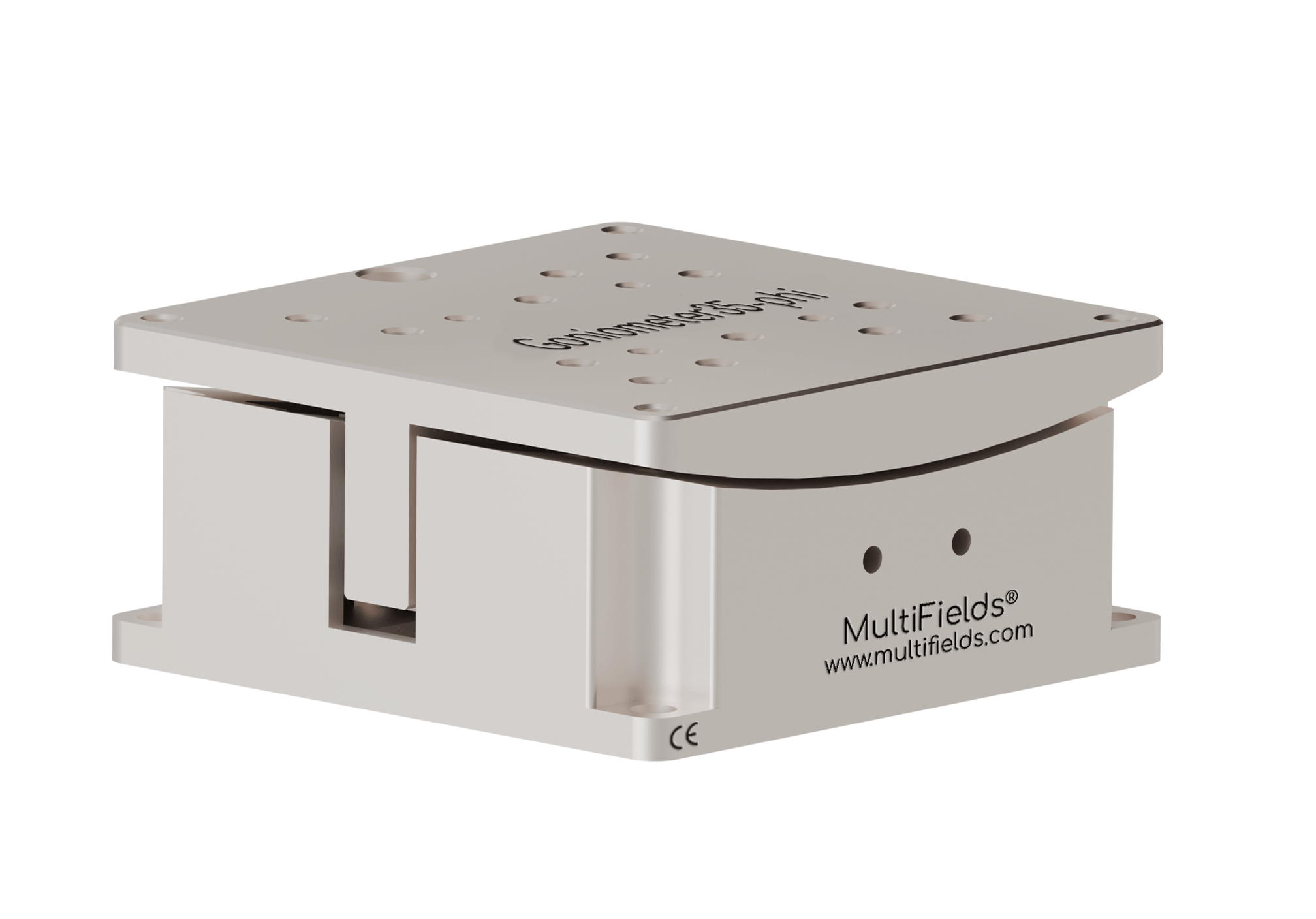

Gionometer35

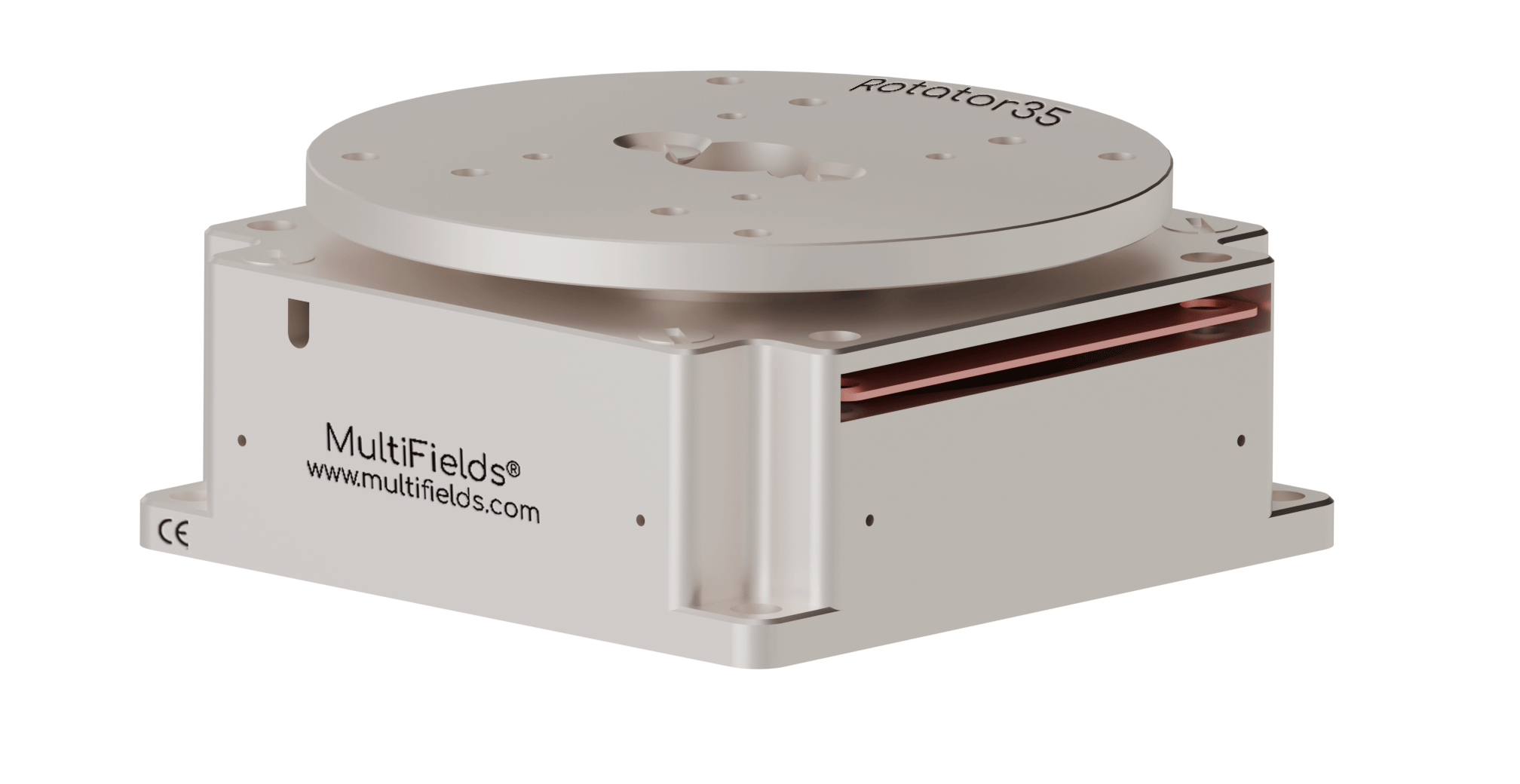

Rotator35

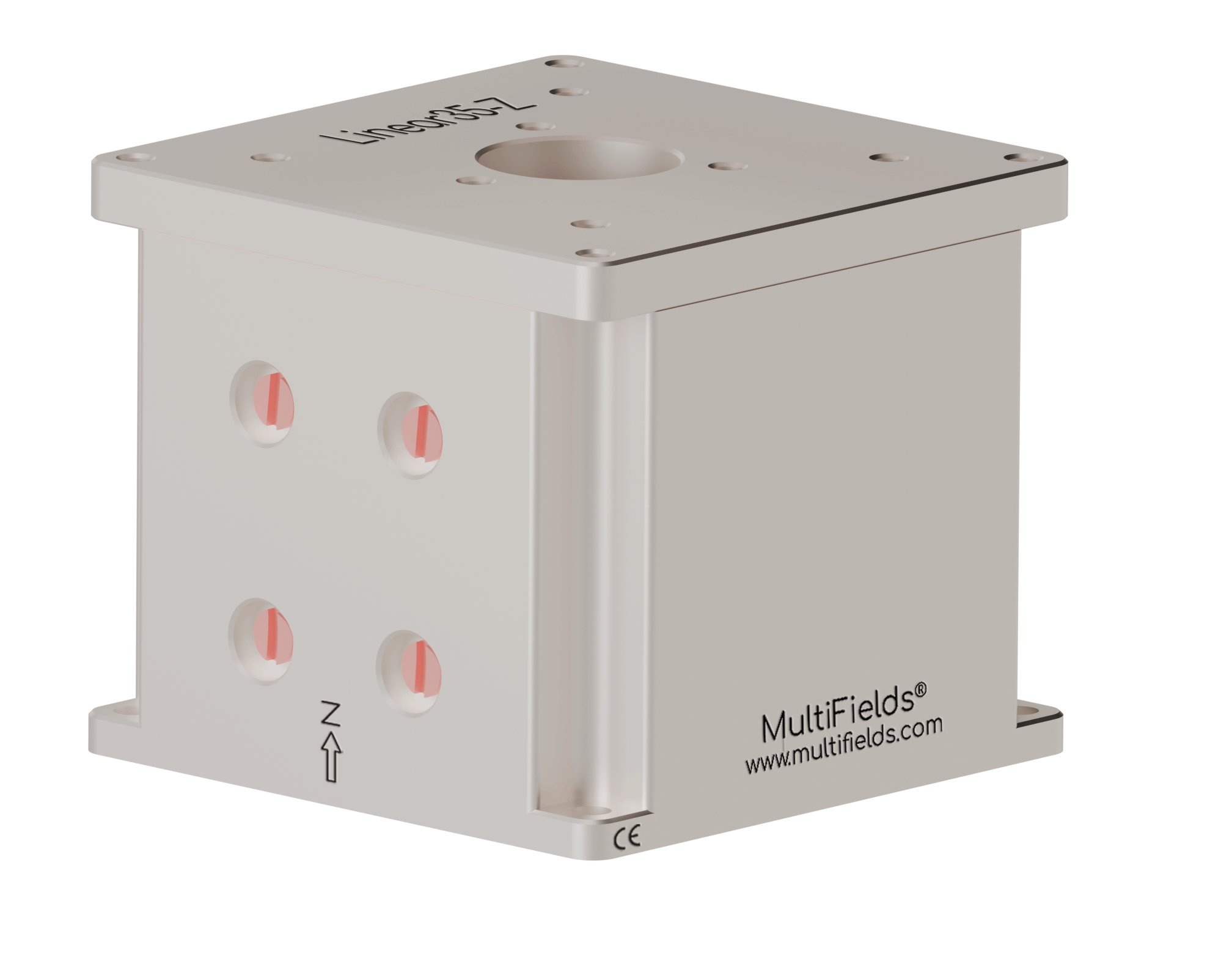

Linear35-z

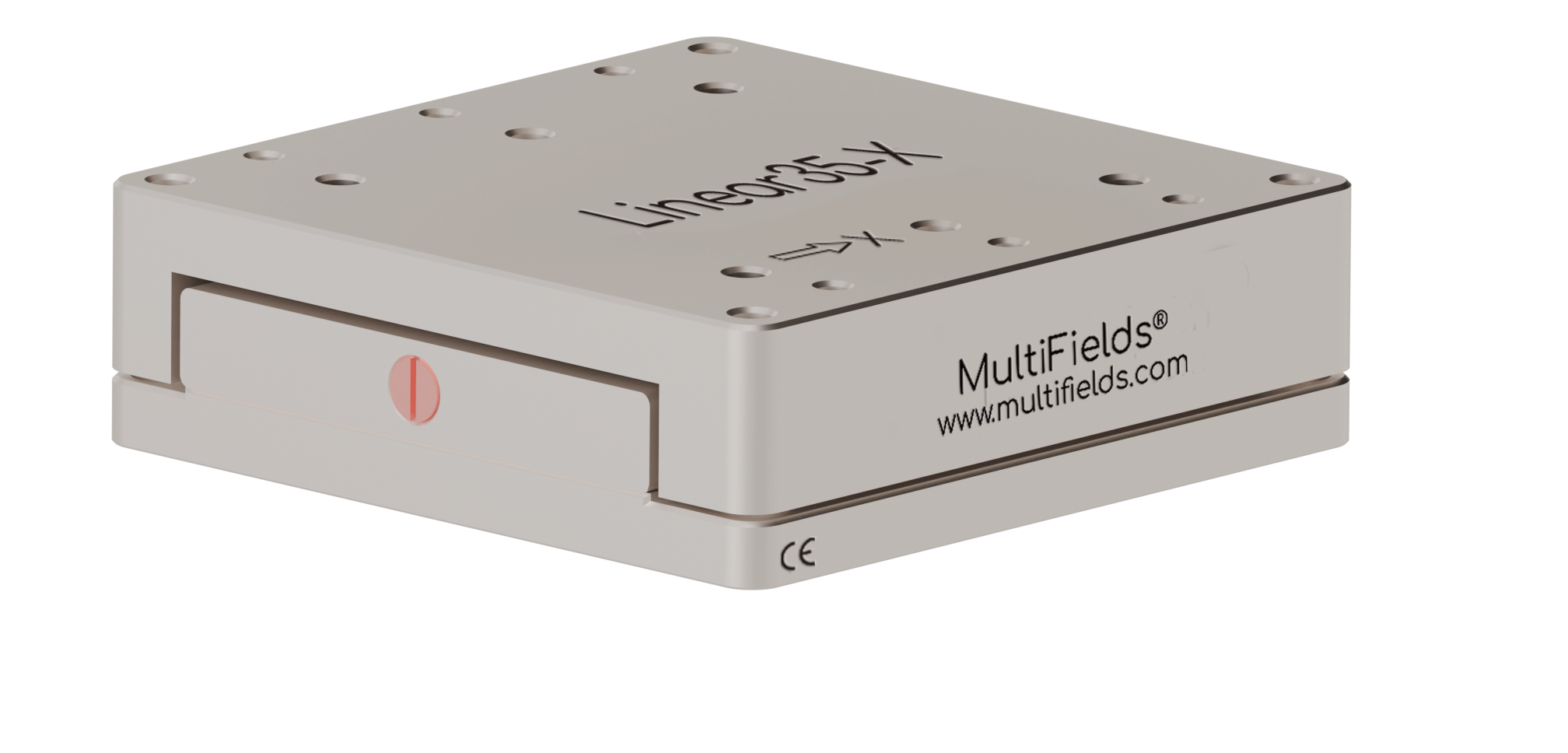

Linear35-x

Cryogenic Motion

Cryogenic Nanopositioning Stages,Scanner.Ultra Series

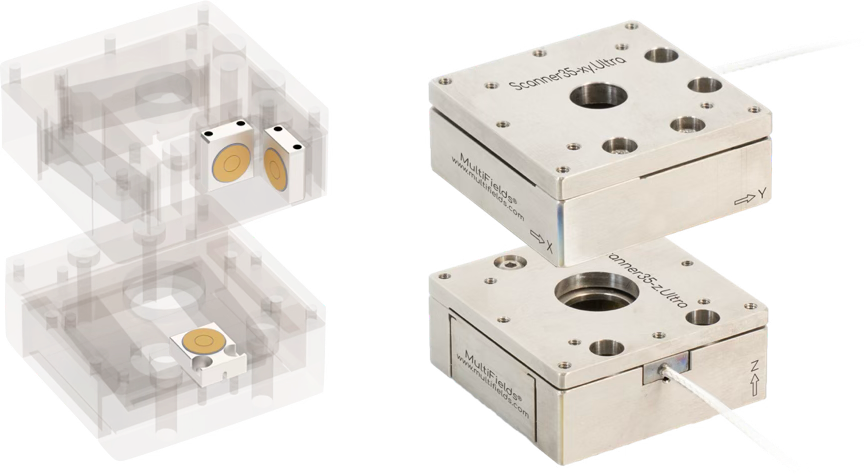

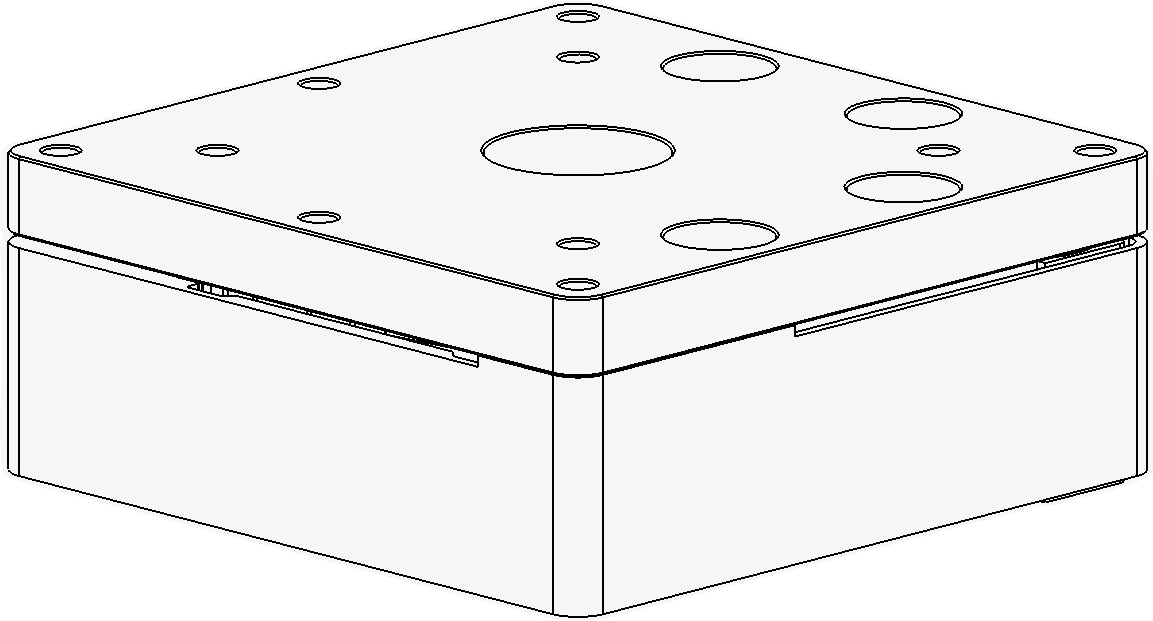

Scanner25/35.Ultra

• Capacitive position sensing with XY and Z scanning motion

• 0.5 nm closed-loop spatial resolution

• 5 nm closed-loop repeatability

• Compatible with ultra-low temperatures (10 mK), high magnetic fields (35 T), and ultra-high vacuum (2 × 10⁻¹¹ mbar)

Details >>

Cryogenic Motion

Cryogenic Long Range Motion,LS-Linear Series

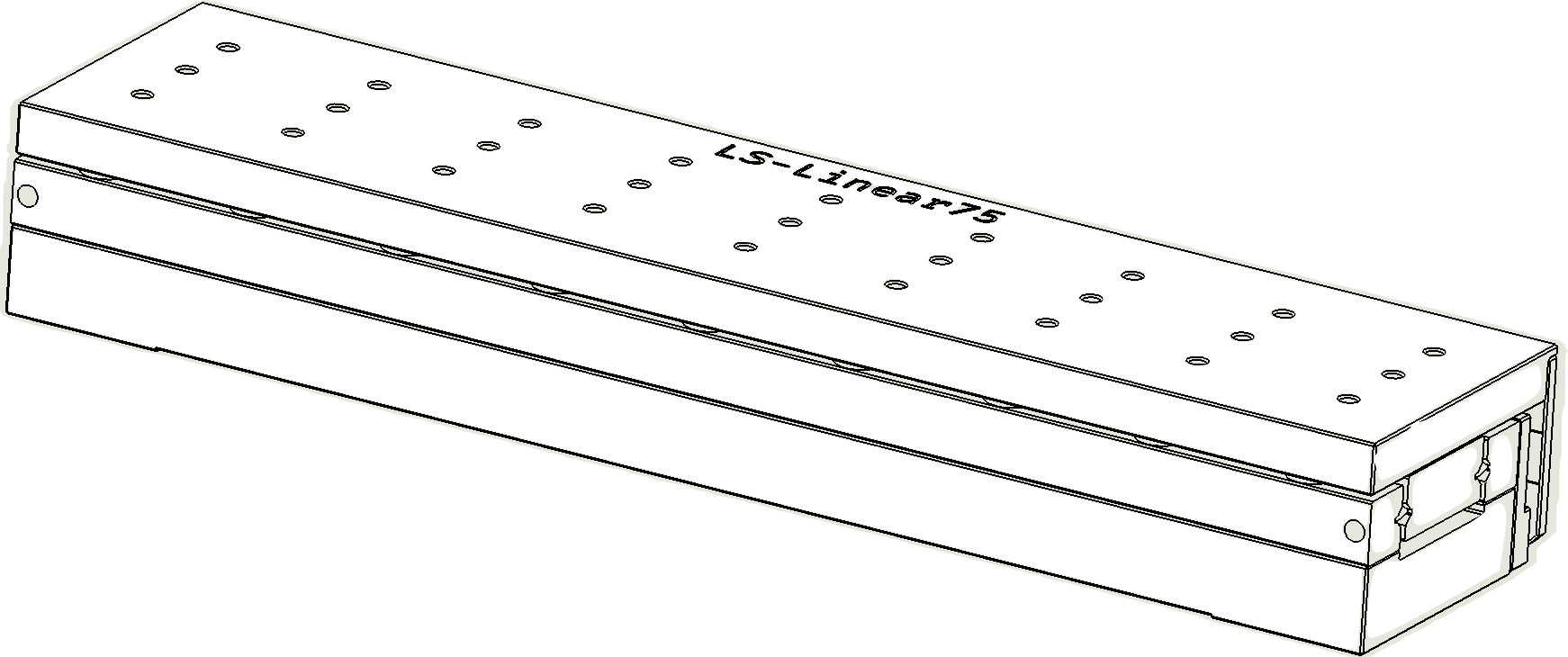

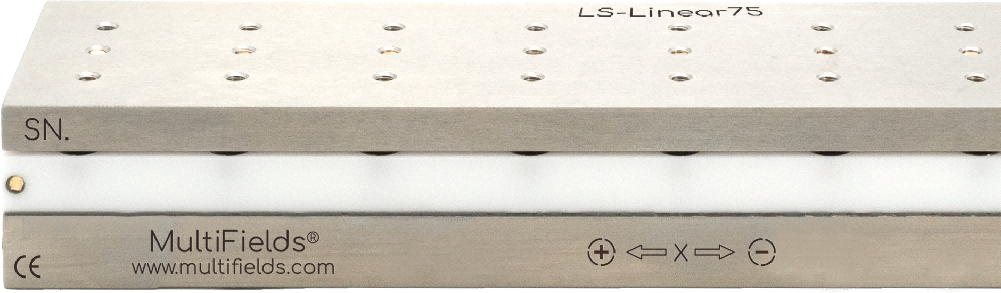

LS-Linear30/50/75/100

• Compatible with ultra-low temperatures (10 mK), high magnetic fields (35 T), and ultra-high vacuum (2 × 10⁻¹¹ mbar)

• High load capacity and high output force: 1000 g & 3 N

• Travel range: 30/50/75/100 mm

Details >>

Cryogenic Motion

Cryogenic Advanced Motion

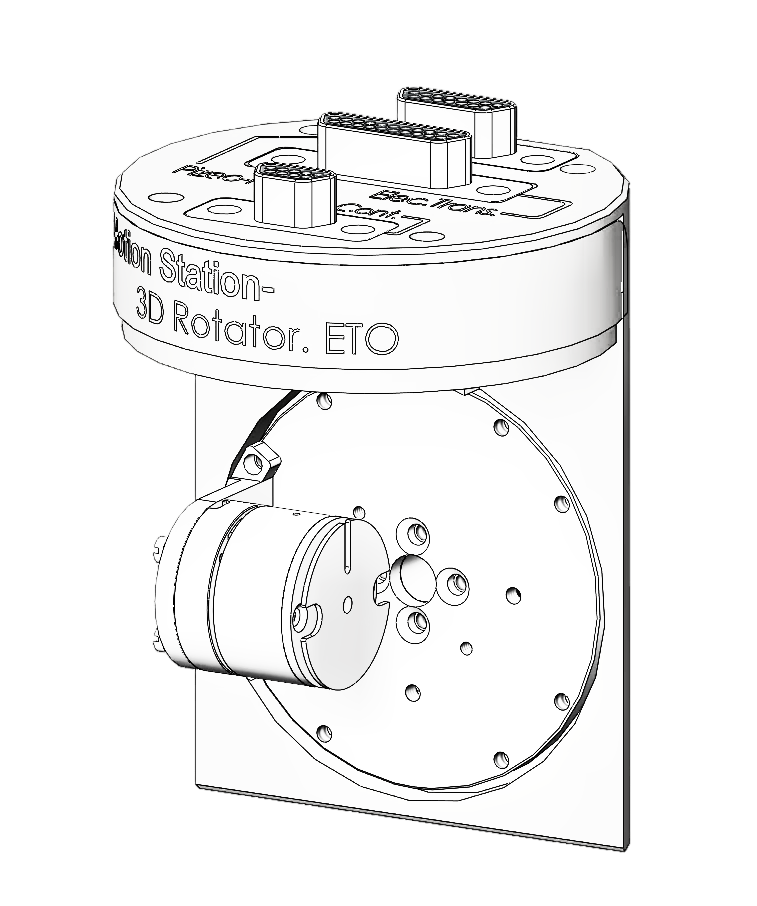

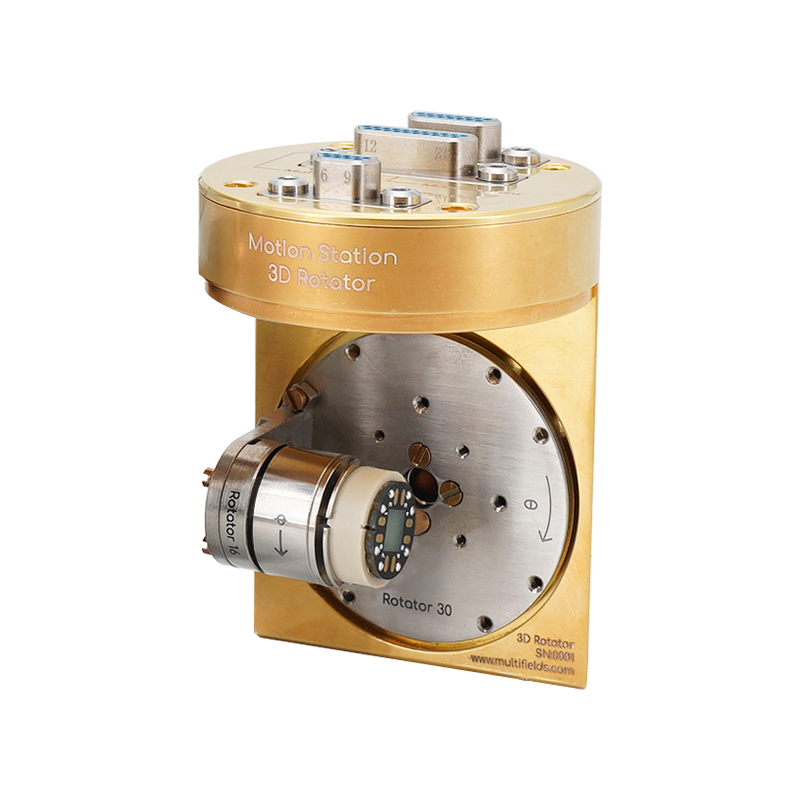

3D Piezoelectric Rotation Stage

• Dual-axis rotation covering the full 3D spherical space

• Standard independent temperature control, closed-loop motion, and electrical measurement

• Integrable with sample rods, cryogenic cold plates, and dilution refrigeratorsms

Details >>

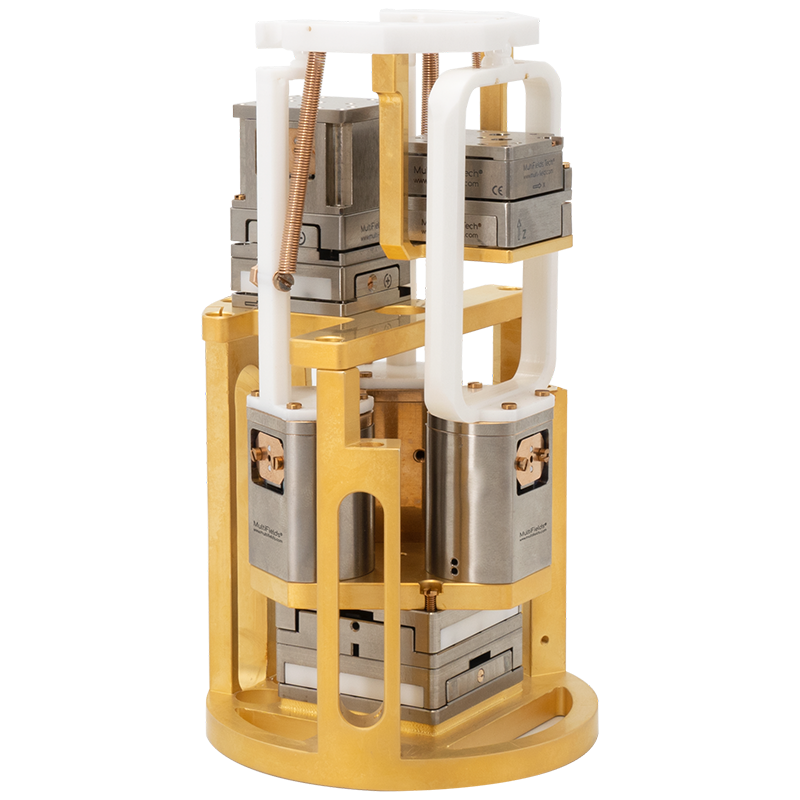

Customized Multi-DOF Motion Modules

• For ultra-low-temperature optical and probe scanning applications

• Support multi-axis XYZ motion and θx / θy / θz rotation

• Integrable with sample rods, cryogenic cold plates, and dilution refrigerators

Details >>

Cryogenic Motion

Accessories

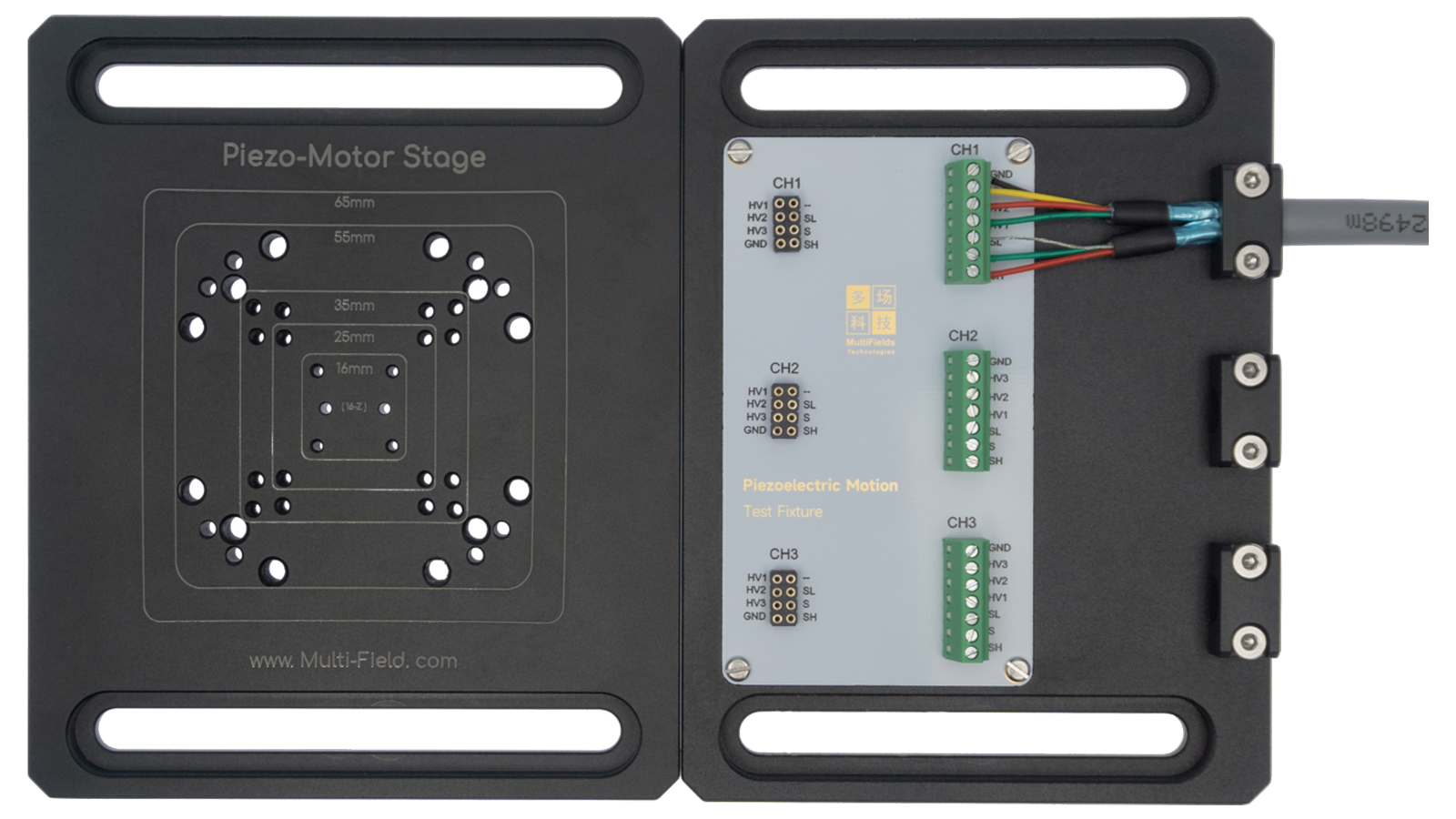

Test Board (AP.LT.xxx)

• For interconnection between different cryogenic stages, special-angle mounting, and rapid setup for initial testing

Details >>

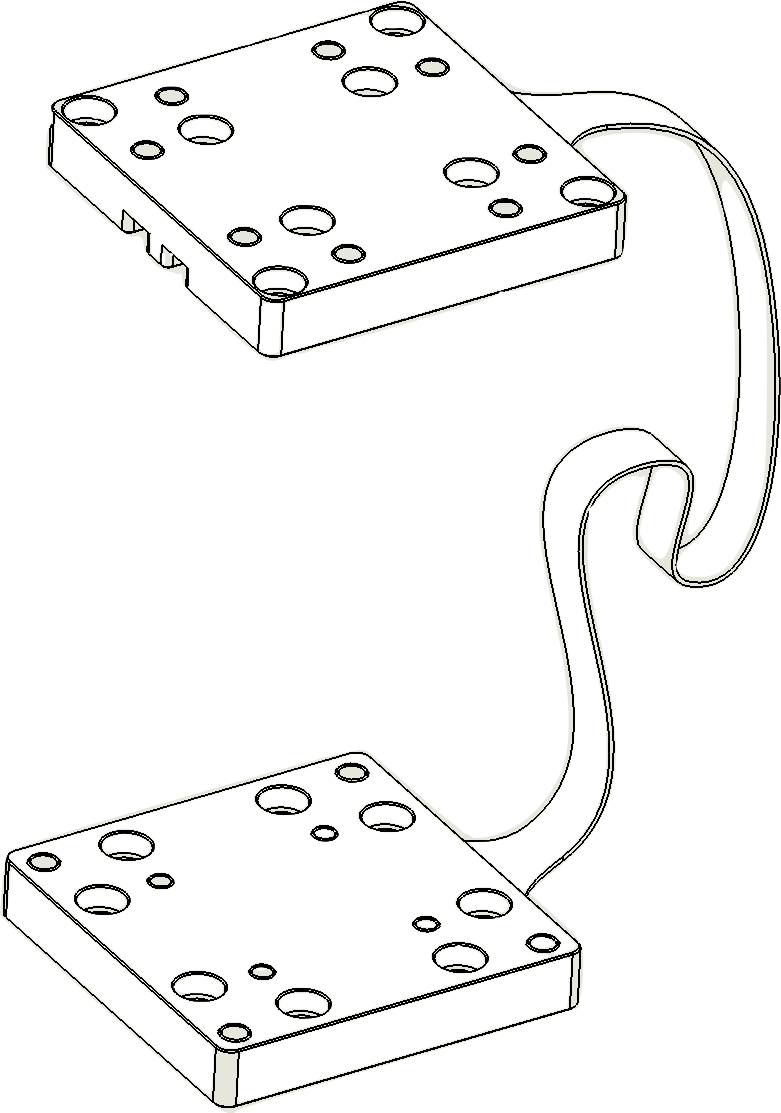

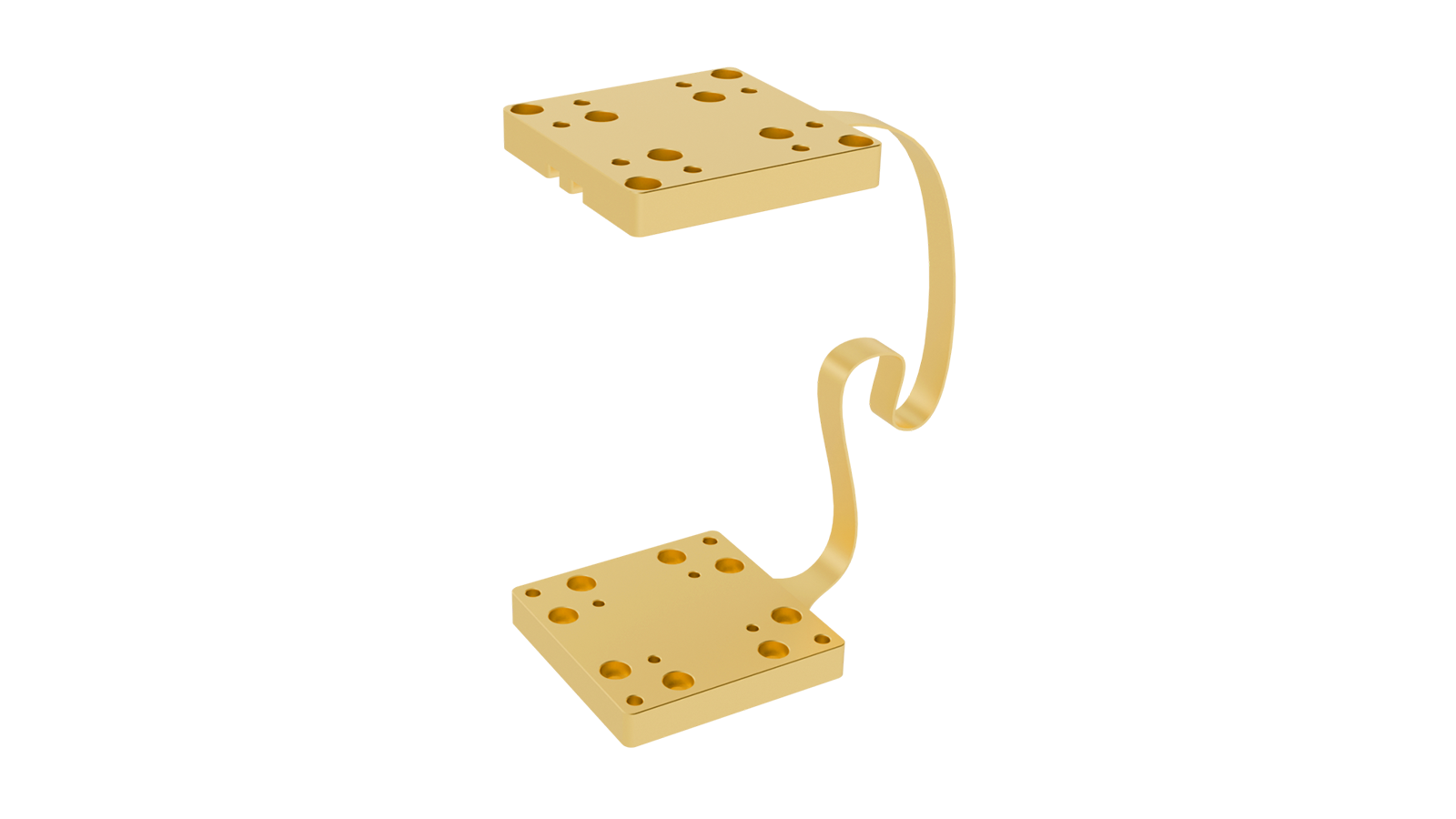

Flexible Thermal Conductor (FTC)

• For thermal conduction between the sample and the cold plate in cryogenic vacuum environments

Details >>

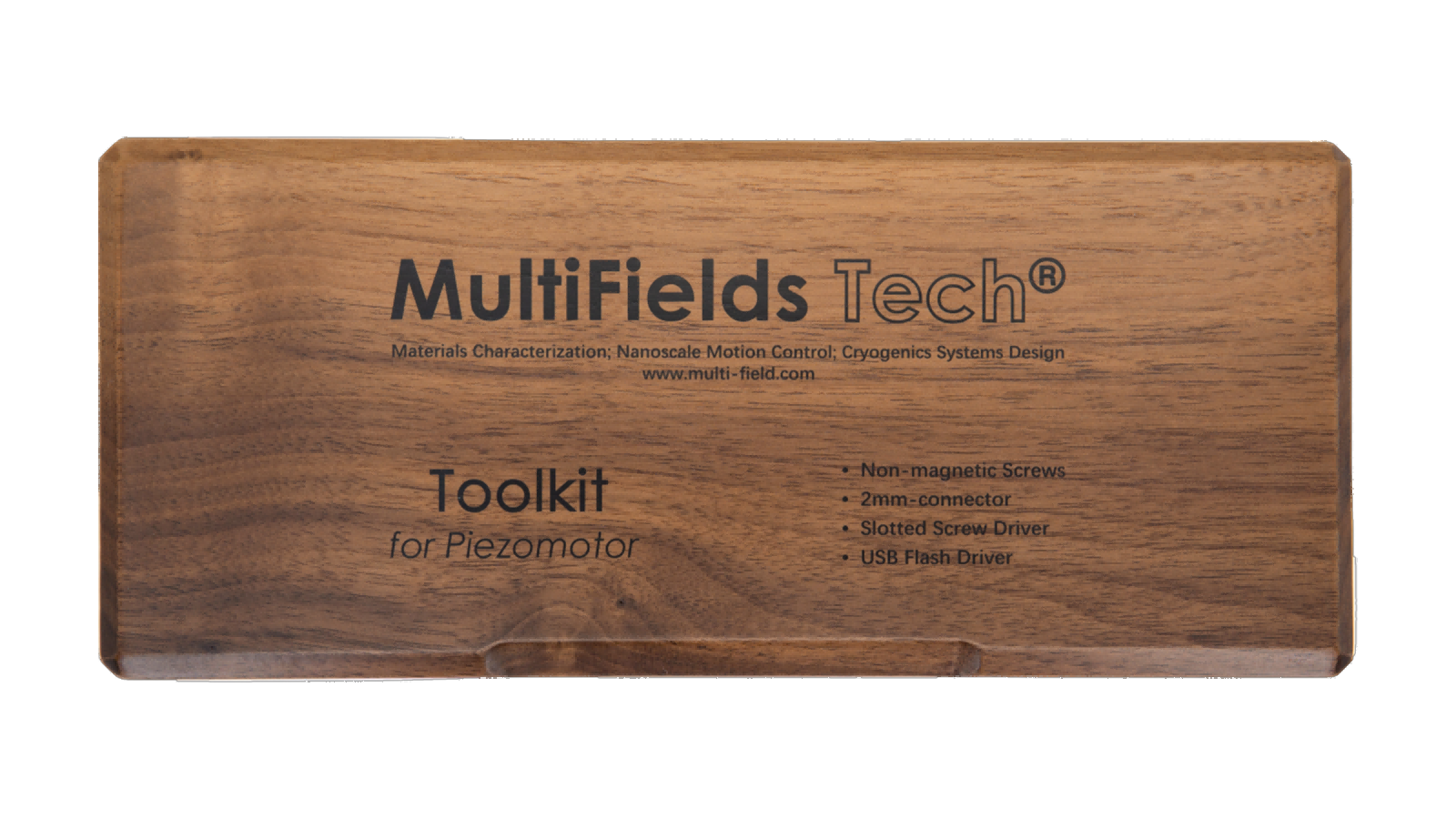

ToolBox

• Non-magnetic screws, electrical connectors, and installation accessories

Details >>

Cryogenic Motion

Controller

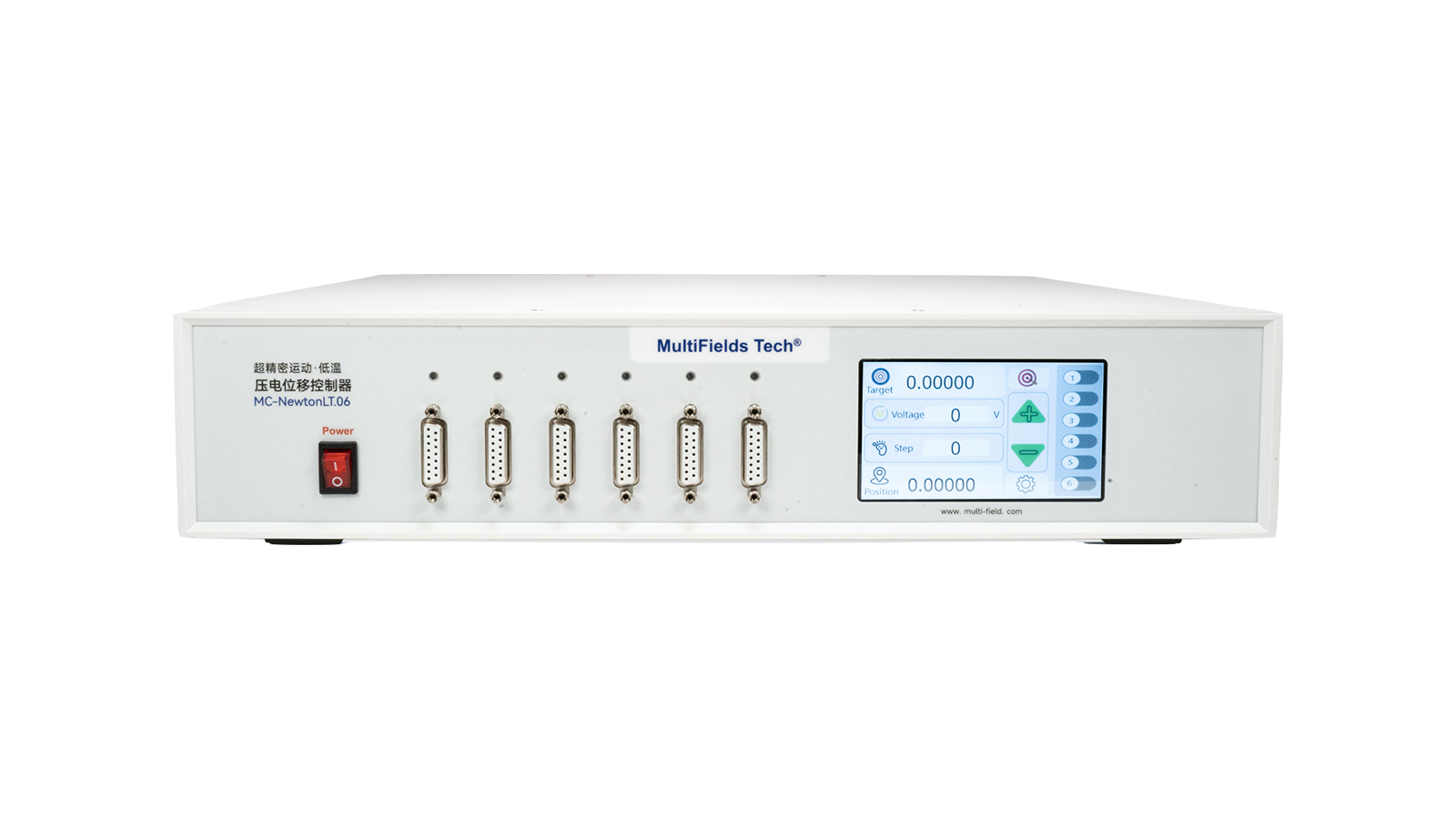

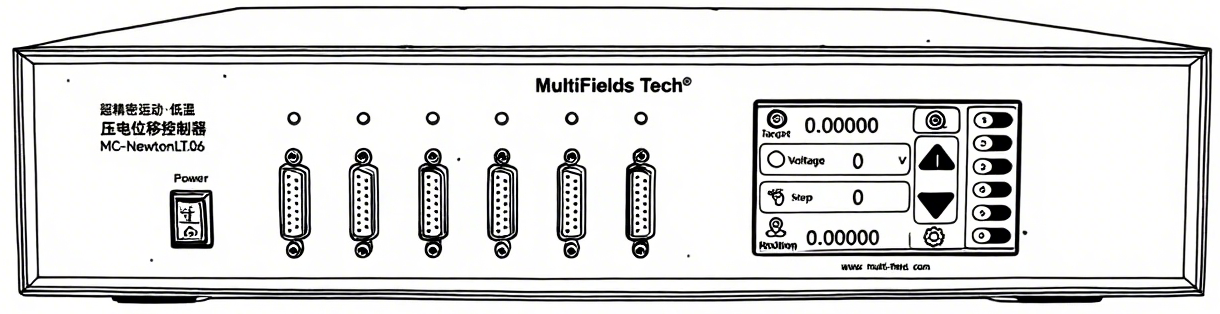

MC-NewtonLT.01/06

• Multi-Axis Cryogenic Stage Controller

• Compatible with cryogenic linear stages, tilt stages, and rotation stages

Details >>

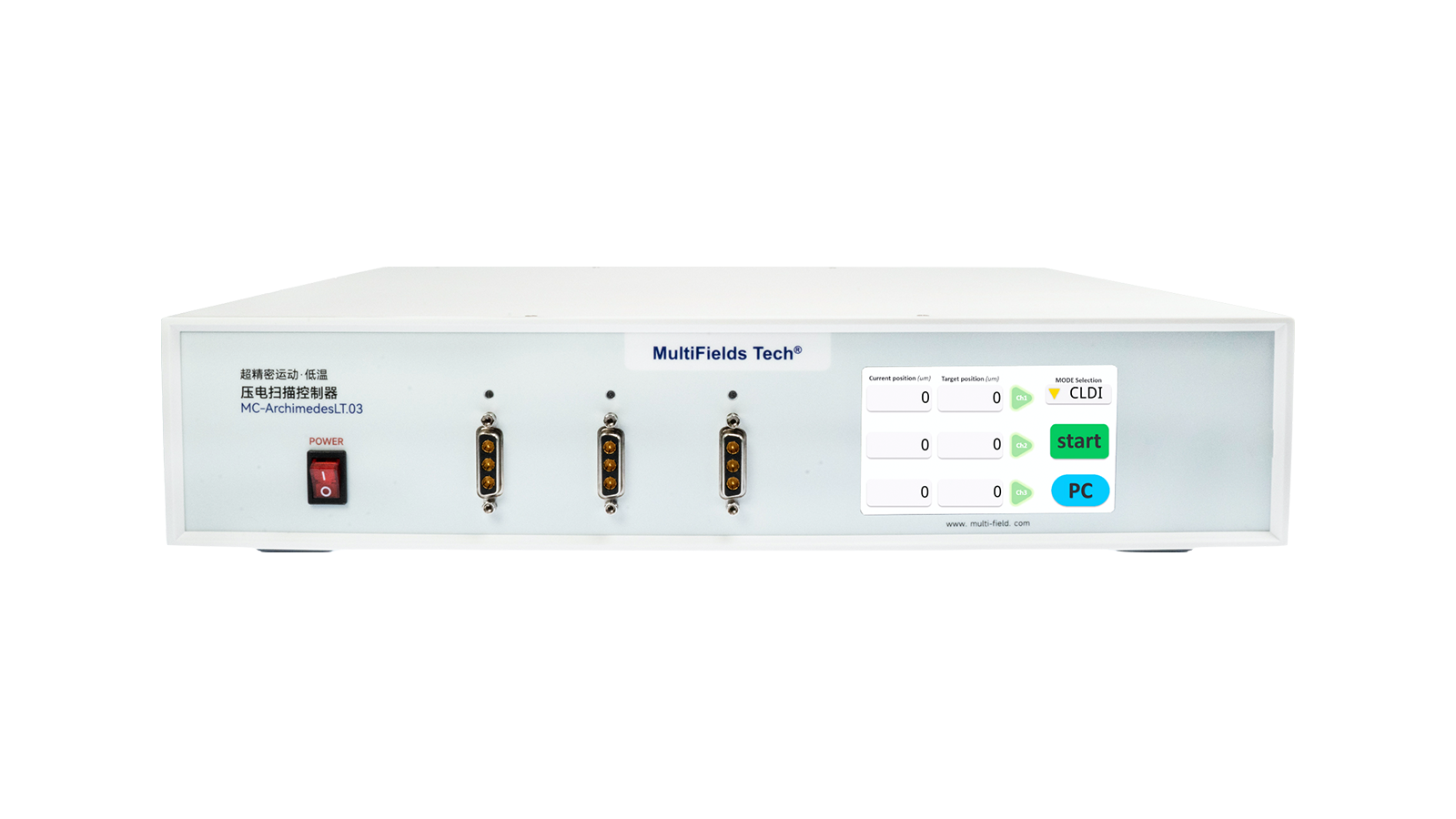

MC-ArchimedesLT.03

• Open-Loop Cryogenic Stage Controller

• 150 V max. output, analog input supported

Details >>

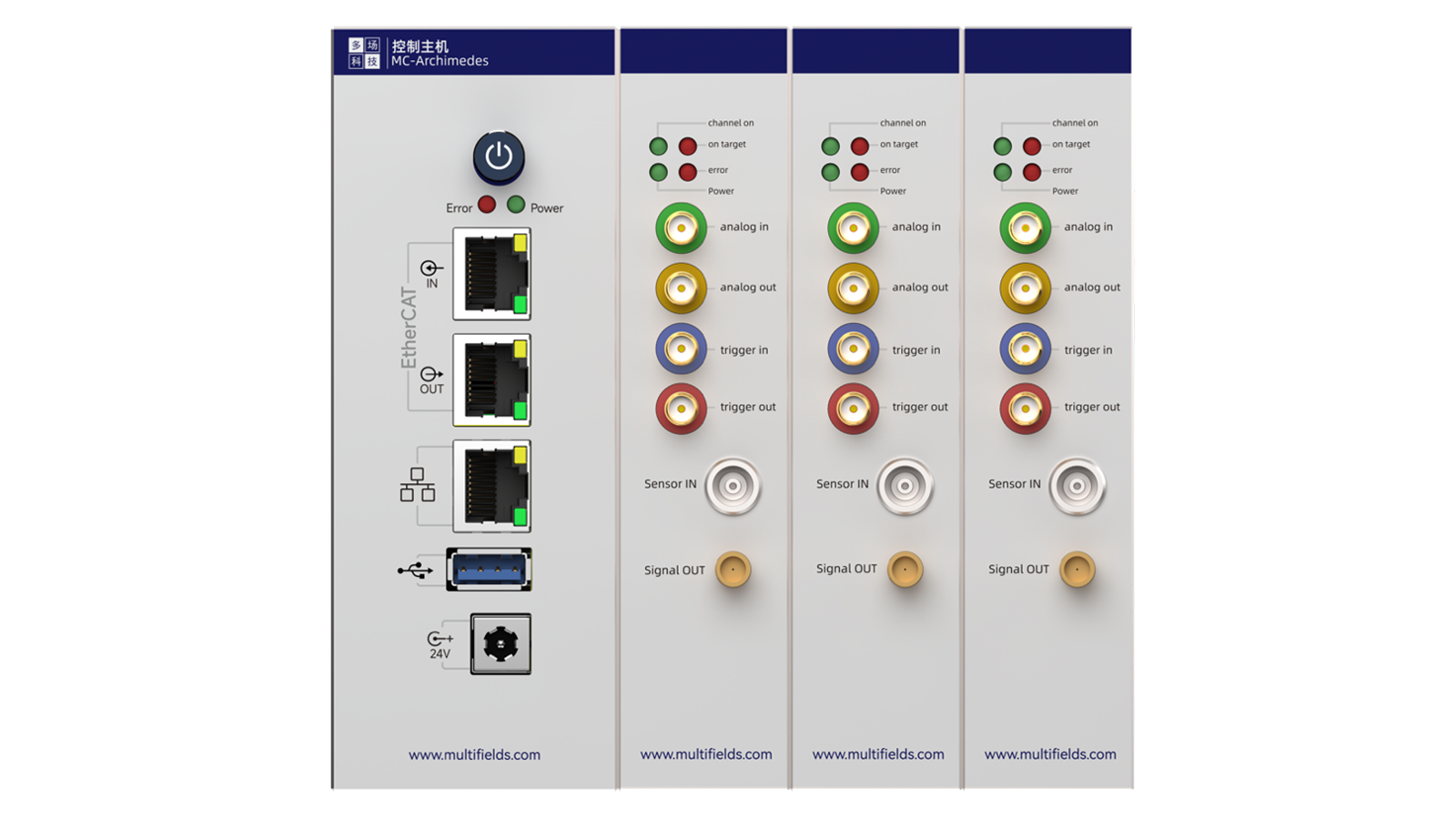

MC-ArchimedesLT.Ultra

• Closed-Loop Cryogenic Stage Controller

• Sub-nanometer resolution, high-speed I/O, and fast closed-loop control

Details >>
