Cryogenic Motion / Cryogenic Rotation Stages
Cryogenic Rotation Stages

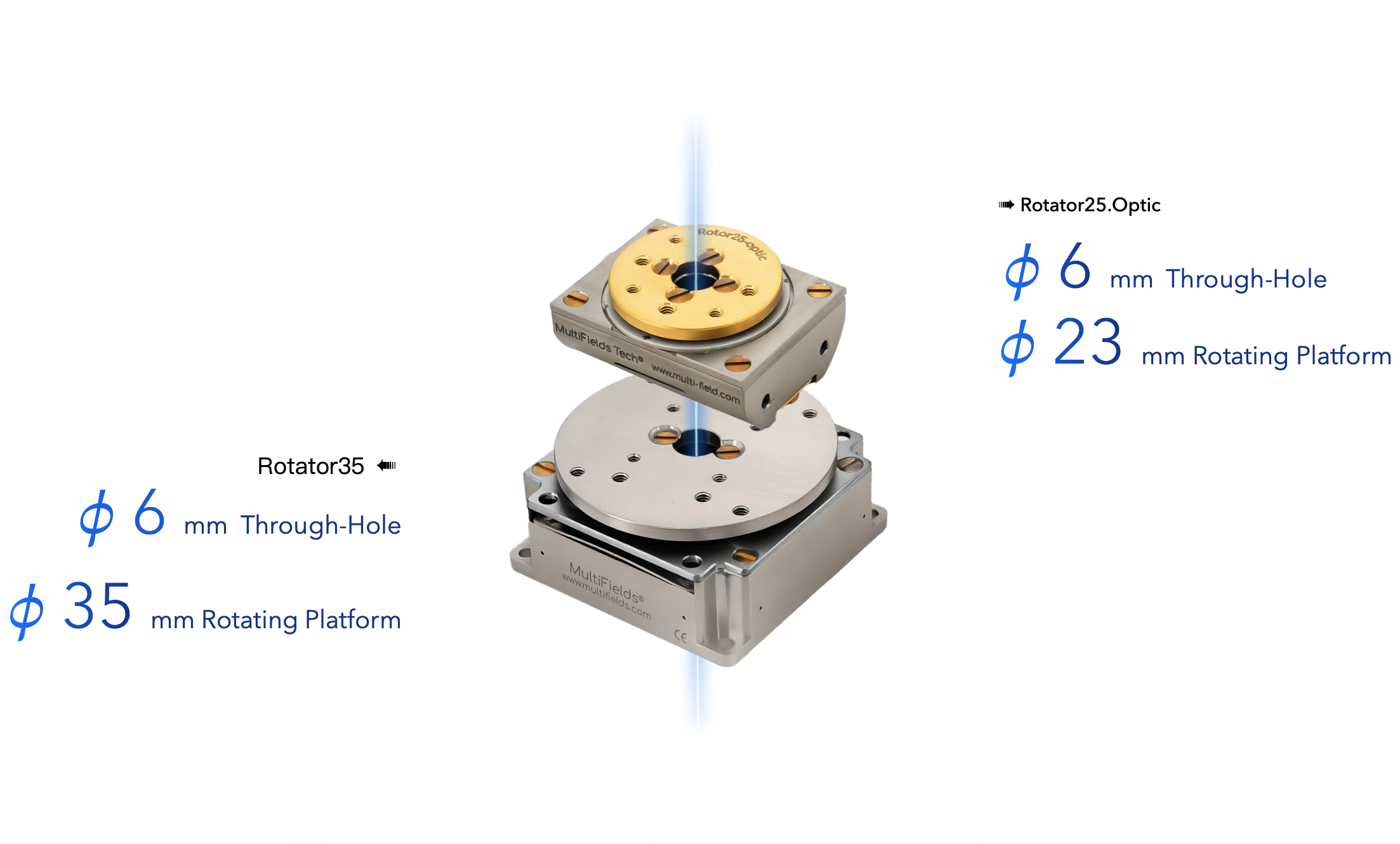

Closed-Loop Rotation , Unobstructed Central Optical Path
Equipped with standard angle sensor for full-series closed-loop control; central optical through-hole ideal for expanded cryogenic optics scenarios
1No special drive cables are needed. All parameters here are measured with 50 Ω cables.
Specifications
Explore Your Options
Rotator16
Rotator25
Rotator25.Optic
Rotator35
➨ Version
Standard Version
2 × 10-7 mbar
1.4 K ~ 350 K
✔
✔
✔
.UHV, Ultra-High Vacuum Version
2 × 10-11 mbar
1.4 K ~ 350 K
✔
✔
✔
.ULT, Cryogenic Version
2 × 10-7 mbar
10 mK ~ 350 K
✔
✔
✔
.UHV.ULT, Ultra-High Vacuum & Cryogenic Version
2 × 10-11 mbar
10 mK ~ 350 K
✔
✔
✔
➨ Mechanical Specifications
1 Mechanical Specifications
Zero Position
Dia. 16 × 16
( mm × mm )
25 × 25 × 14.5
( mm × mm × mm )
30 × 23 × 14.5
( mm × mm × mm )
35 × 35 × 16.5
( mm × mm × mm )
2 Materials
Standard Version
.UHV
.ULT
.UHV.ULT
Titanium Alloy; 10 g
Titanium Alloy; 10 g
Beryllium Copper; 17 g
Beryllium Copper; 17 g
Titanium Alloy; 24 g
Titanium Alloy; 24 g
Beryllium Copper; 41 g
Beryllium Copper; 41 g
Titanium Alloy; 24 g
Titanium Alloy; 24 g
Beryllium Copper; 41 g
Beryllium Copper; 41 g
Titanium Alloy; 45 g
Titanium Alloy; 45 g
Beryllium Copper; 76 g
Beryllium Copper; 76 g
3 Travel Range
270 °
360 °
360 °
360 °
➨ Motion and Positioning
4 Maximum Speed
@ 300 K
~ 3 °/s
~ 3 °/s
~ 3 °/s
~ 3 °/s
5 Max.Payload
100 g
250 g
250 g
500 g
6Max.Torque
0.4 N·cm
1.5 N·cm
1.5 N·cm
2.5 N·cm
7 Minimum Incremental Motion
0.5 m°
0.4 m°
0.4 m°
0.3 m°
8 Fine Adjustment Resolution
@ 2 K
5 μ°
4 μ°
4 μ°
3 μ°
9 Bidirectional Repeatibility
50 m°
10 Sensor
Type
Measurement Range
Resolution
Power Consumption
Resistive Position Sensor
270 °
320 °
320 °
320 °
~ 10 m°
0.5 mW (0.5 μW optional for cryogenic applications)
➨ Installation & Operation
11 Mounting Options
Rotator16
Surface·Threaded Hole
2 pcs – M1.6 × 2 mm
12.5 mm – 2
Rotator25
Surface·Threaded Hole
6 pcs – M2 × 2 mm
15 mm × 15 mm
3 pcs – M1.6 × 2 mm
11.5 mm × 11.5 mm
Rotator25.Optic
Surface·Threaded Hole
3 pcs – M2 × 2 mm
Φ 15 mm
3 pcs – M1.6 × 2 mm
11.5 mm × 11.5 mm
Rotator35
Surface·Threaded Hole
4 pcs – M2 × 2 mm
21.6 mm × 21.6 mm
4 pcs – M2 × 2 mm
11 mm × 20 mm
4 pcs – M1.6 × 2 mm
11.5 mm × 11.5 mm
Rotator16
Base·Mounting Hole
2 pcs – M1.6 × 2 mm
13.5 mm – 2
Rotator25
Base·Mounting Hole
4 pcs – Φ 2.1 mm
21.6 mm × 21.6 mm
Rotator25.Optic
Base·Mounting Hole
2 pcs – M2 × 4 mm
13 mm – 2
Rotator35
Base·Mounting Hole
4 pcs – Φ 2.1 mm
31 mm × 31 mm
12 Cable & Connector
Actuator Cables & Connectors
Sensor Cables & Connectors
Twisted Phosphor Bronze Wires
2 mm Header Pin (1 × 2 Pin)
Twisted Phosphor Bronze Wires
2 mm Header Pin (1 × 3 Pin)
13 Controller
MC-NewtonLT.06
