Cryogenic Motion / Linear-X
Cryogenic Linear Stage·Linear-x Series
Ultra-High Load Capacity & Nanometer-Level Precision
Full Series Rail Structure: Compact Design Meets Outstanding Performance
1No special drive cables are needed. All parameters here are measured with 50 Ω cables.
Specifications
Explore Your Options
Linear16-x
Linear motion
Linear25-x
Linear motion
Linear35-x
Linear motion
➨ Version
Standard Version
2 × 10-7 mbar
1.4 K ~ 350 K
✔
✔
✔
.UHV, Ultra-High Vacuum Version
2 × 10-11 mbar
1.4 K ~ 350 K
✔
✔
✔
.ULT, Cryogenic Motion Version
2 × 10-7 mbar
10 mK ~ 350 K
✔
✔
✔
.UHV.ULT,Non-magnetic,Cryogenic Motion Version
2 × 10-11 mbar
10 mK ~ 350 K
✔
✔
✔
➨ Mechanical Specifications
1 Dimensions
Zero position
16 × 16 × 10.5
( mm × mm × mm )
25.4 × 25.4 × 9.5
( mm × mm × mm )
35 × 35 × 10.5
( mm × mm × mm )
2 Materials
Standard
.UHV
.ULT
.UHV.ULT
Titanium Alloy; 10 g
Titanium Alloy; 10 g
Beryllium Copper; 17 g
Beryllium Copper; 17 g
Titanium Alloy; 24 g
Titanium Alloy; 24 g
Beryllium Copper; 41 g
Beryllium Copper; 41 g
Titanium Alloy; 38 g
Titanium Alloy; 38 g
Beryllium Copper; 60 g
Beryllium Copper; 60 g
3 Travel Range
3 mm
6 mm
20 mm
4 Installation Space
Envelope Dimensions for Full-Travel Motion
(Width × Length × Thickness)
Linear16-x,
16 mm × 19 mm × 10.5 mm
Linear25-x,
25 mm × 31 mm × 9.5 mm
Linear35-x,
35 mm × 55 mm × 10.5 mm
➨ 技术参数
5 Maximum Speed
@ 300 K
~ 2 mm/s
~ 2 mm/s
~ 2 mm/s

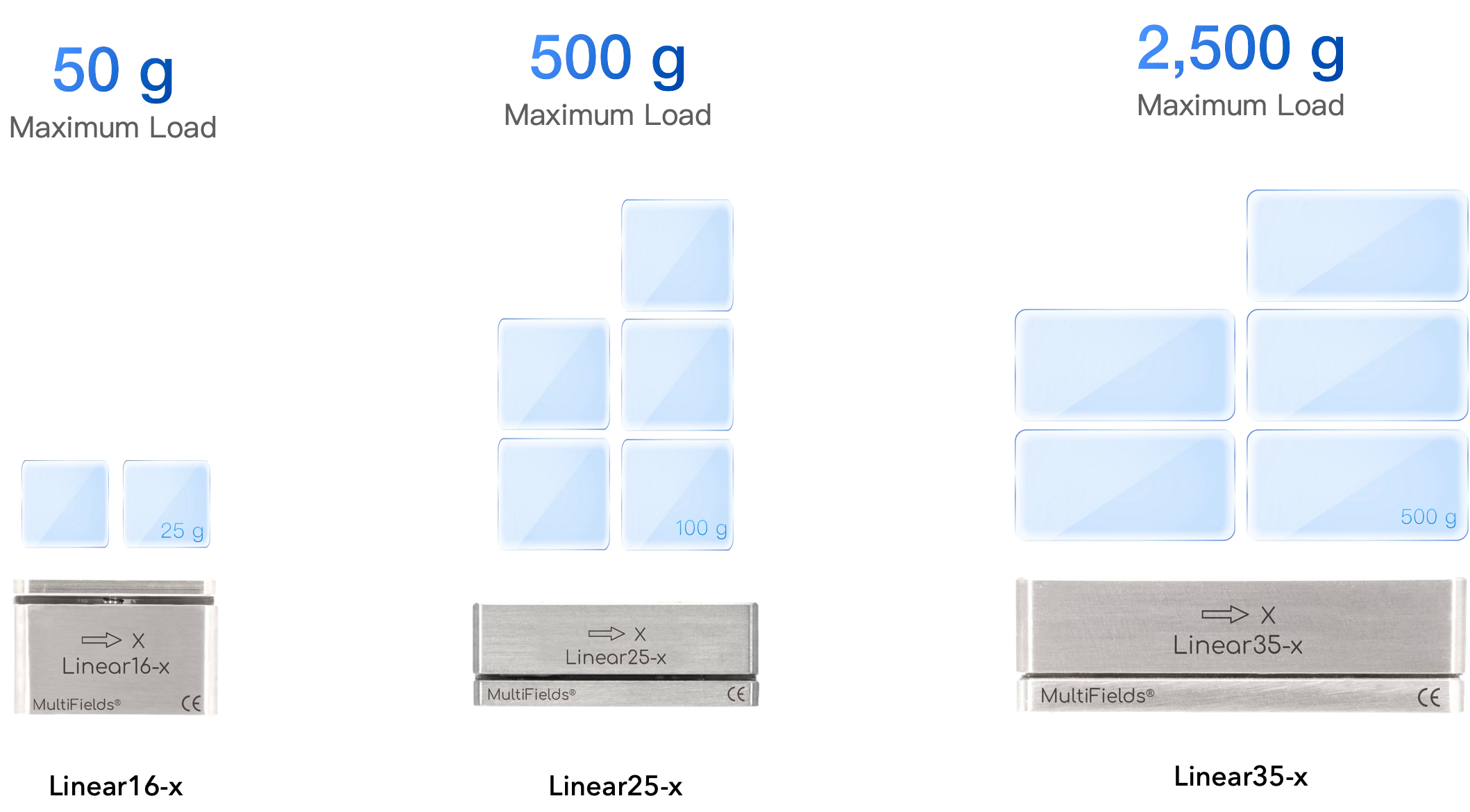

6 Maximum Load
50 g
500 g
2500 g
7 Driving Force
1.5 N
2 N
3 N
8 Minimum Incremental Motion
~10 nm
~10 nm
~10 nm
9 Fine Adjustment Resolution
@ 2 K
sub – nm
sub – nm
sub – nm
10 Bidirectional Repeatibility
1~2 μm
11 Sensor
Type
Measurement Range
Resolution
Power Consumption
Resistive Position Sensor
3 mm
6 mm
20 mm
~ 150 nm
1 mW (1 μW optional for cryogenic applications)
➨ Installation & Operation
12 Mounting Options
Linear16-x
Surface·Threaded Hole
4 pcs – M1.6 × 2 mm
11.5 mm × 11.5 mm
4 pcs – M1.6 × 2 mm
Φ 5 mm
Linear25-x
Surface·Threaded Hole
4 pcs – M1.6 × 2 mm
11.5 mm × 11.5 mm
4 pcs – M2 × 2 mm
21.6 mm × 21.6 mm
4 pcs – M2 × 2 mm
11 mm × 20 mm
Linear35-x
Surface·Threaded Hole
4 pcs – M2 × 2 mm
21.6 mm × 21.6 mm
4 pcs – M2 × 2 mm
31 mm × 31 mm
4 pcs – M2 × 2 mm
16 mm × 29 mm
Linear16-x
Base·Mounting Hole
2 pcs – Φ 2.1 mm
11.5 mm – 2
Linear25-x
Base·Mounting Hole
3 pcs – Φ 2.1 mm
21.6 mm × 21.6 mm
Linear35-x
Base·Mounting Hole
4 pcs – Φ 2.1 mm
31 mm × 31 mm
13 Cable & Connector
Actuator Cables & Connectors
Sensor Cables & Connectors
Twisted Phosphor Bronze Wires
2 mm Header Pin (1 × 2 Pin)
Phosphor Bronze Twisted Trio
2 mm Header Pin(1 × 3 pin)
14 Controller
MC-NewtonLT.06
