ColdTABLE
Helium-Free Low-Vibration
Optical Platform
2.8 K
Base Temperature
5 nm
Vibration Amplitude
∅ 100 mm
Sample Space
8 + 1
Optical Windows
UHV
Compatible
Cooler or Less Vibration?Your Call
ColdTABLE
Enhanced Cooling Performance
ColdTABLE.Quiet
Reduced Vibration
1 Base Temperature
2.8 K
3.8 K
2 Cooling Power @ 4.2K
200 mW
20 mW
3 Sample Space
Default Version
.Max Version
∅ 100 mm
∅ 200 mm
∅ 100 mm
N/A
4 Vibration Amplitude
Default Version
.Max Version
24 nm
26 nm
5 nm
N/A
5 Dimensions
Default Version
.Max Version
1 m × 0.8 m × 100 mm
1 m × 2 m × 200 mm
Sample Space·Exterior Structure

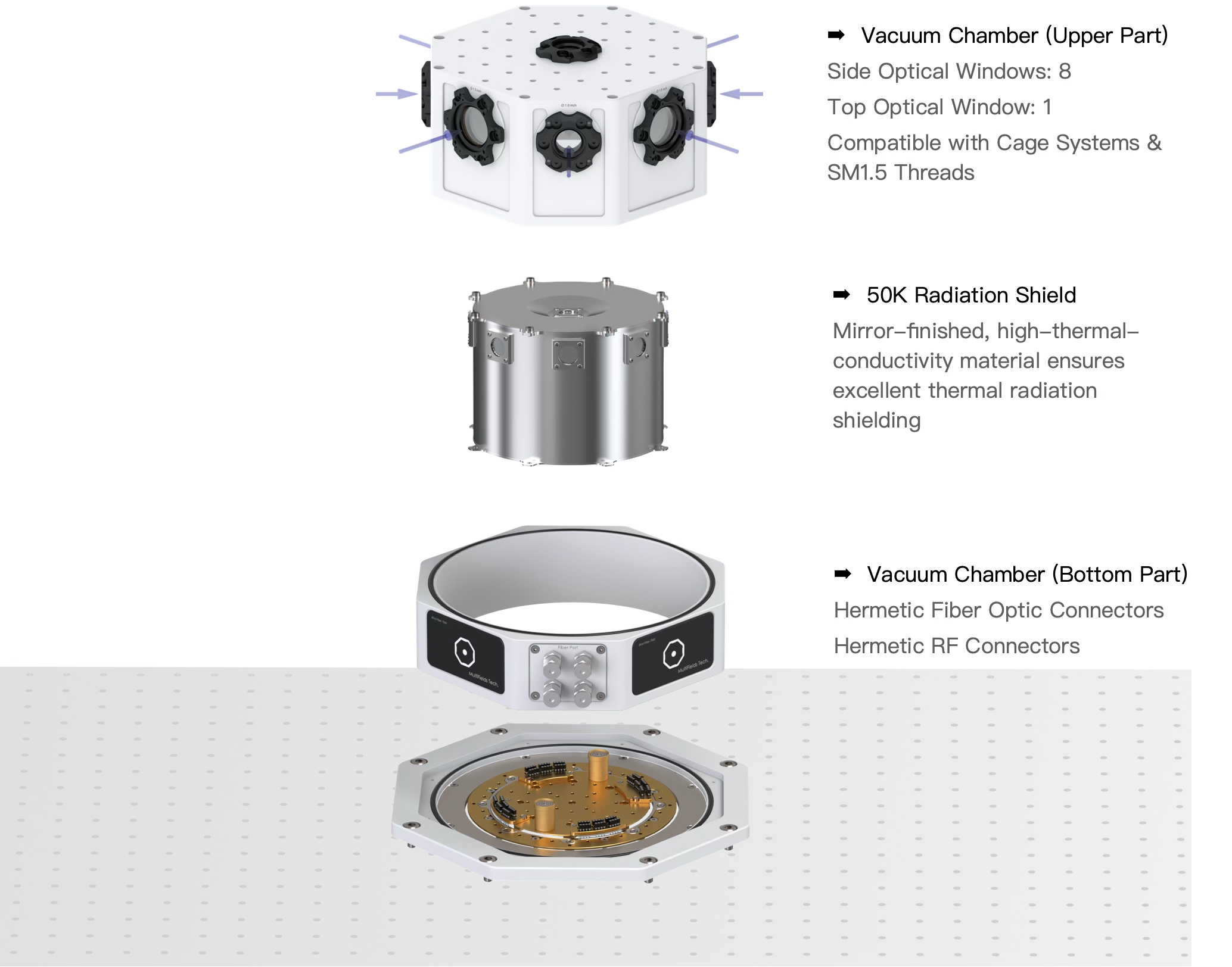

Vacuum Chamber Structure
Sample Space·Exterior Structure
Tailored Optical Optimization
To better support complex optical experiments, we offer more than 10 optional window materials, support expansion with fiber optic vacuum feedthrough interfaces, and ensure window hardware compatibility with optical cage systems & SM threaded standards
Optical Window Materials
1.More than 10 Materials Available
Optical Window Structure
2. Compatible with 30 mm Cage System Extension
Vacuum Feedthrough Connection
4. Supports Fiber Optic & High-Frequency Signal Access
Optical Window Structure
3. Supports SM1.5 Standard Threads
Sample Space·Internal Structure
∅ 100 mm / ∅ 200 mm
Go Big or Go Bigger
Configurable Electrical Connections
Type – A Module, 1 pc
Type – B Module, 4 pcs
Default Version
∅ 100 mm
Base Temperature
（~ 2.8 K）
Configurable Electrical
Connections
Type – A Module, 2 pcs
Type – B Module, 4 pcs
.Max Version
∅ 200 mm
Base Temperature
（~ 4 K）
Electrical Connections & Functional Components
电学连接 · 高频 & 交流
(Type – A)
4 × 2.92 mm
射频信号
半钢线缆 (Semi-rigid)
支持 40 GHz 信号
电学连接 · 高频 & 交流
(Type – A)
4 × SMA
高频交流信号
柔性同轴线缆
支持 2 GHz 信号
电学连接 · 直流
(Type – B)
最终用户自用
PN：342506
24路自由配置线路
6 × 4 pins
电学连接 · 直流
(Type – B)
控制 & 监视温度
PN：354809
温度控制，2路
2 × 6 pins
温度控制，1路
1 × 4 pins
电学连接 · 直流
(Type – B)
压电运动控制
PN：234580
XYZ 三轴位移台
3 × 5 pins
XY 两轴扫描台
1 × 4 pins
电学连接 · 直流
(Type – B)
盲板
PN：167804
功能组件
光纤夹具
(低温端)
支持4根低温光纤固定
功能组件
真空吸附
活性炭颗粒
吸附残余气体
Vibration Control
Ultra-Low Vibration-5 nm
Large Working Space-∅100 mm
Laser interferometer offers higher spatial resolution while more closely replicating real-world optical experiment scenarios: the optical path is fixed on an optical breadboard, with the sample under test placed in a cryogenic environment*
Accessories 1
Sample Mounting Stage Compatible with Electrical Measurements
直流电学信号 · 样品安装台
水平型
8 × 镀金接线端
专为光场&电场下的光学&电学测试设计
10 mm × 10 mm
高导热无氧铜区
直流电学信号 · 样品安装台
垂直·透射型
8 × 镀金接线端
专为电场下的光学透射实验设计
10 mm × 10 mm 高导热无氧铜区
Φ 5 mm 通光孔
高频信号 & 共面波导 · 样品安装台
水平·共面波导
共面波导，双端 2.92mm 接头
8 x 镀金接线端，直流信号
高频信号 & 共面波导 · 样品安装台
垂直·共面波导
共面波导，双端 2.92mm 接头
8 x 镀金接线端，直流信号
高频信号 & 共面波导 · 样品安装台
水平·高频样品台
4 x 2.92mm, ( 40 GHz )
8 x 镀金接线端，直流信号
10 mm x 10 mm 高导热无氧铜区
高频信号 & 共面波导 · 样品安装台
透射·高频样品台
4 x 2.92mm, ( 40 GHz )
8 x 镀金接线端，直流信号
10 mm x 10 mm 高导热无氧铜区
Φ 5 mm 通光孔
Choose1
Cryogenic Motion Down to 10 mK
16 mm Series
25 mm Series
35 mm Series
Linear Stages
Linear16-x
Linear25-x
Linear35-x
Vertical Stages
Linear16-z
Linear25-z
Linear35-z
Rotation Stages
Rotator16
Rotator25
Rotator25-Optic
Rotator35
Tilt Stages
N/A
Goniometer25.phi/theta
Goniometer35.phi/theta
Nanopositioning Stages
Scanner16-xy
Scanner16-z
Scanner25-xy
Scanner25-z
Scanner35-xy
Scanner35-z
Choose2

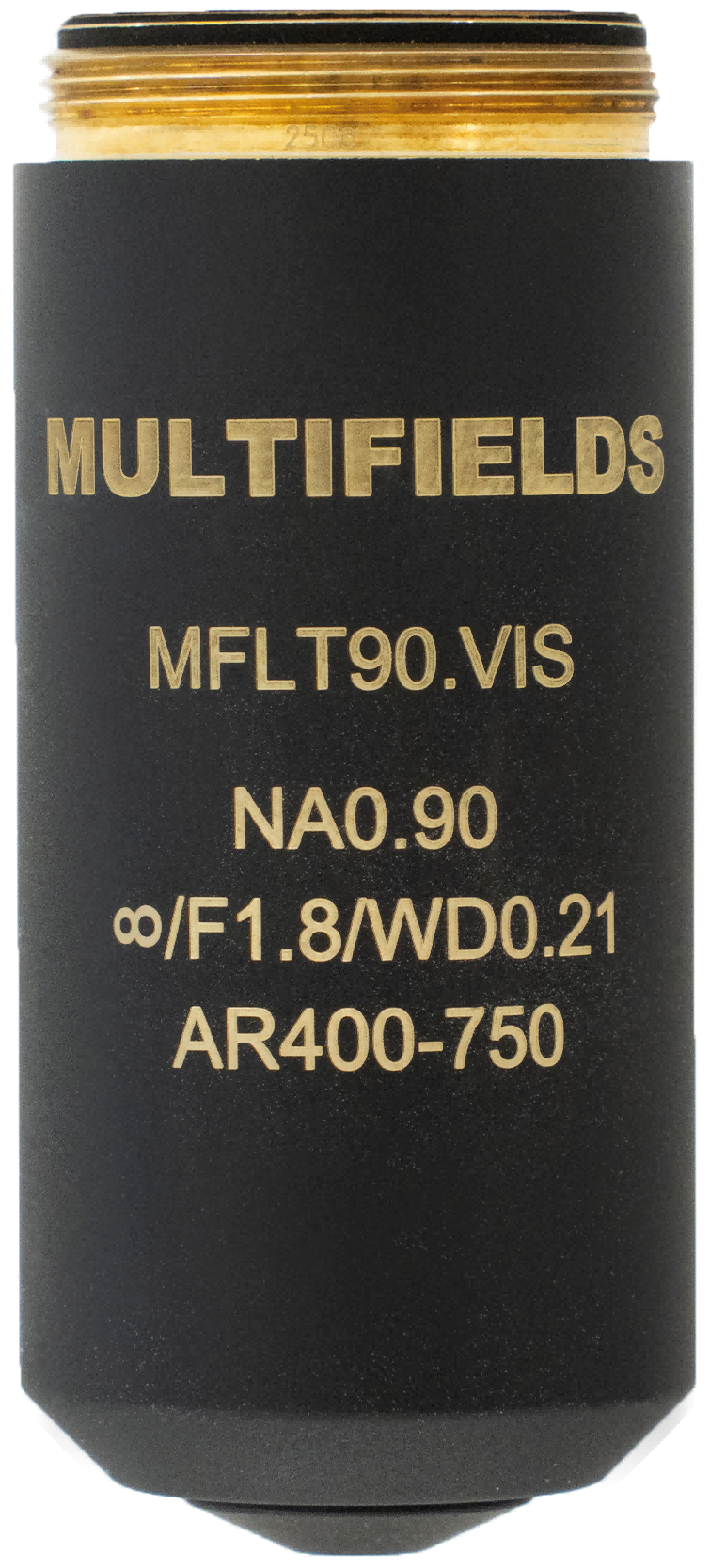

Cryogenic Objective Lens “Huygens” Series
Huygens-0.9
Huygens-0.6
Huygens-0.36
1 Numerical Aperture (N.A.)
0.90
0.60
0.36
2 Working Distance
1.0 mm
6.0 mm
13.8 mm
3 AR Coating
(>85% Transmittance)
430 – 800 nm
430 – 1050 nm
480 – 1500 nm
4 Achromatic Range* (df < ±Δ)
460 – 590 nm
470 – 670 nm
470 – 1500 nm
5 Operating Environment
4 -305 K, Non-magnetic Structure & HV Compatible (UHV on Request)
6 Aperture Diameter
Φ 4.30 mm
Φ 4.64 mm
Φ 4.76 mm
7 Focal Length
2.67 mm
3.87 mm
6.68 mm
8 Weight
50 g
76 g
55 g
9 Diameter
22 mm
22 mm
21 mm
10 Length
59.5 mm
71 mm
64 mm
11 Thread
RMS (W20.32×0.706)
