Analysis&Measurement / Kelvinion

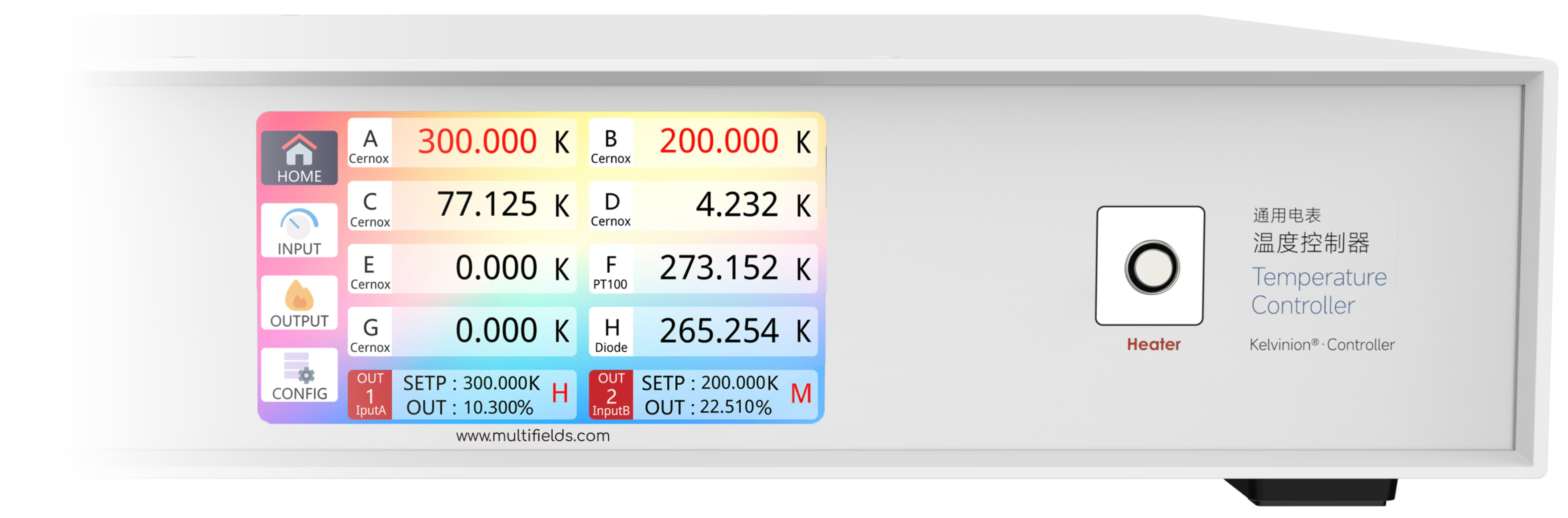

Kelvinion Series
Installation & Operation Procedure
Minimum excitation current of 100 nA, with measurement and temperature control resolution down to 1 mK
300 mK
Minimum Measurement & Control Temperature
1 mK
Temperature Measurement & Control Resolution
1000
Calibration Curve
100 W / 50 W / 0.1 W / 0.1 W
Up to 4 Control Channels

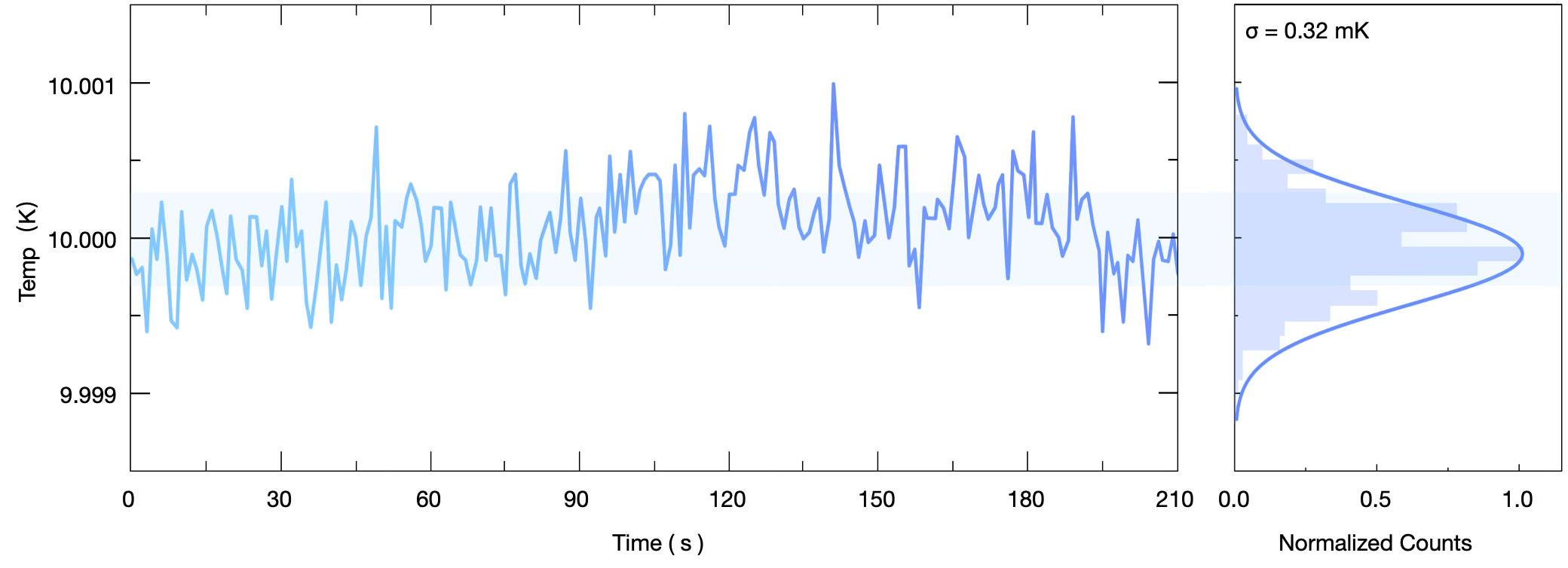

Real-Time Temperature Measurement & Control
Industry-leading temperature resolution with up to 8 independent measurement channels

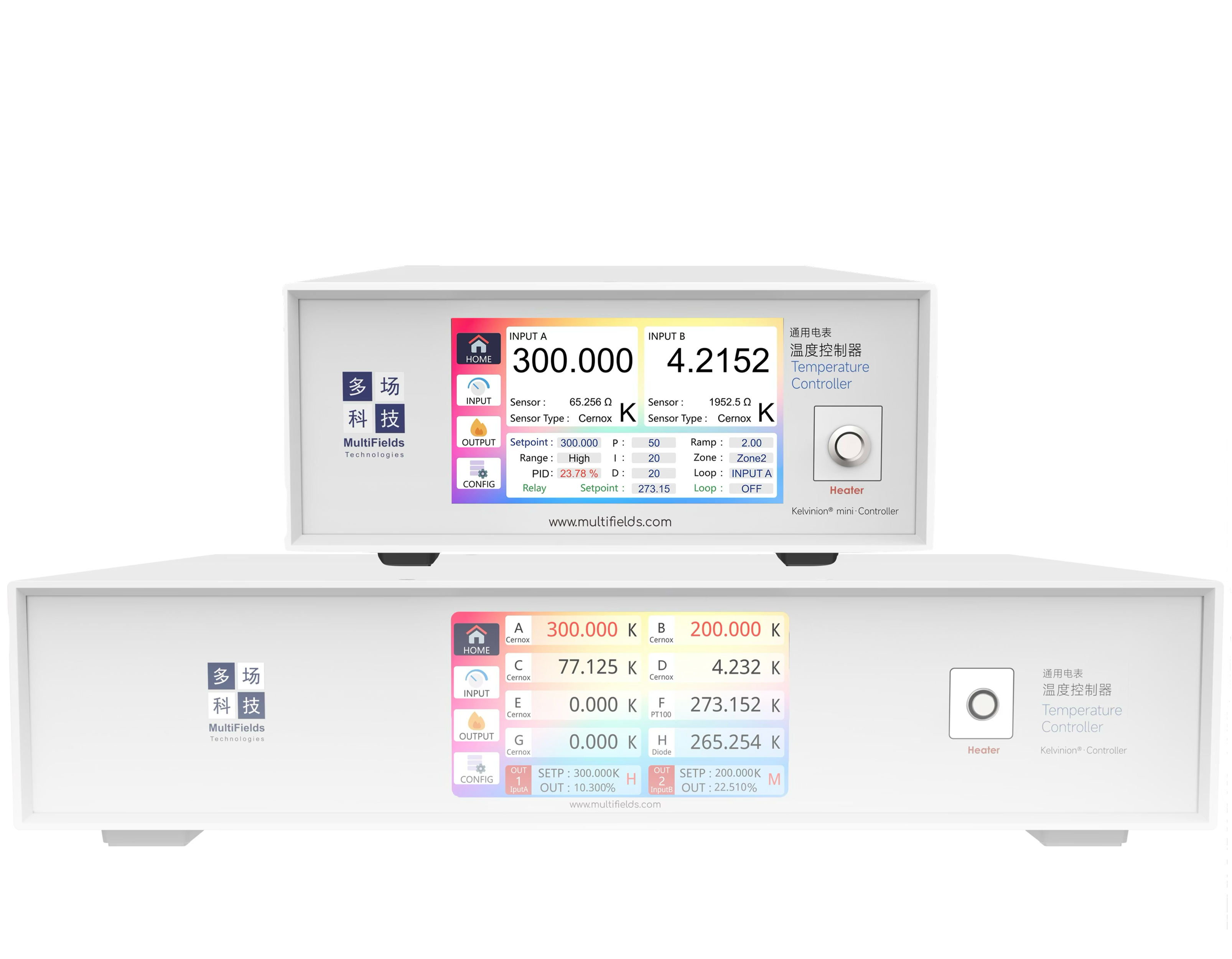

All-in-One & Compact
Simply choose the most suitable temperature controller model based on the required number of measurement and control channels
Function 1: Temperature Monitoring
Kelvinion
8 independent channels
8 independent temperature measurement channels, each with a 10 Hz readout rate

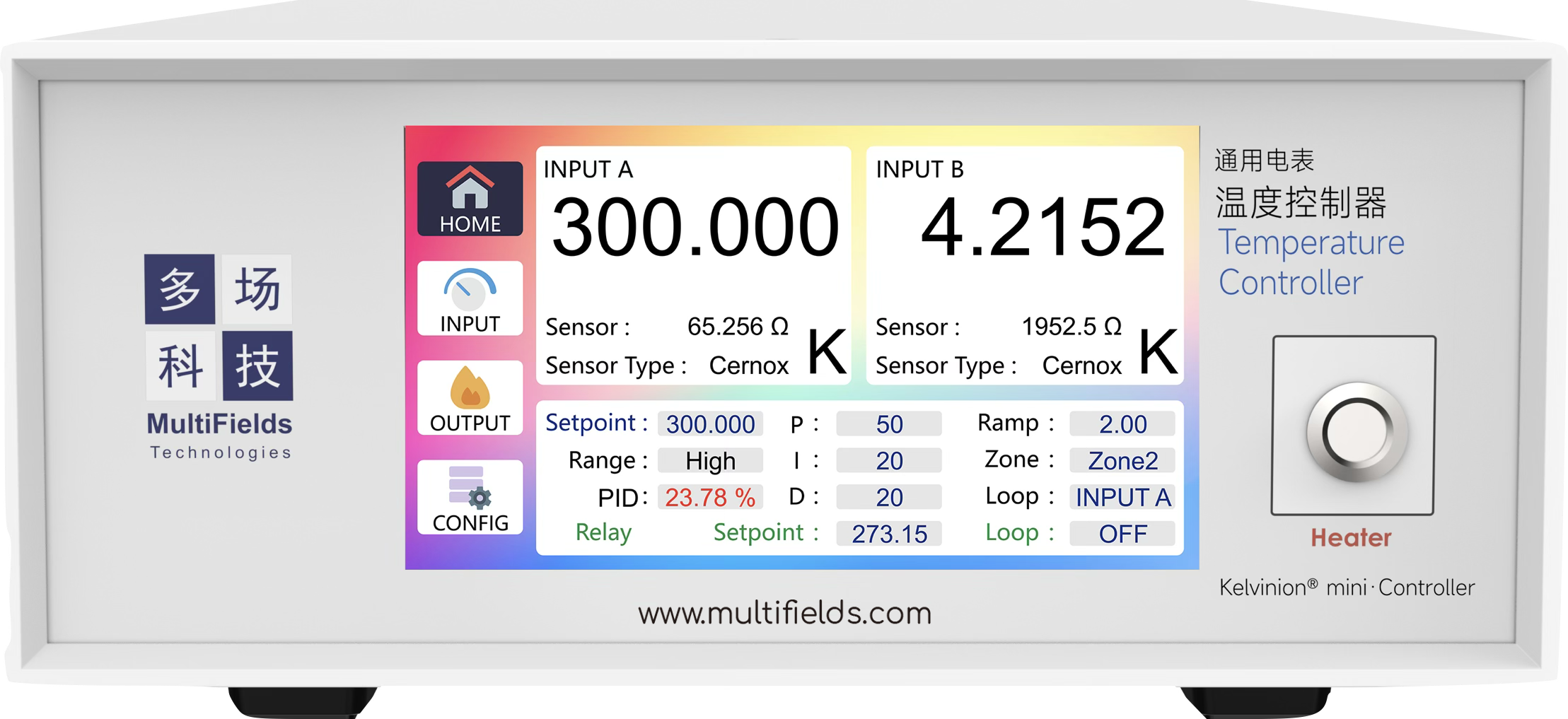

Kelvinion mini
2 independent channels
2 independent temperature measurement channels, each with a 10 Hz readout rate
Function 2: Heating Control
Kelvinion
Kelvinion mini
Heating Channel 1 / 2
100 W / 50 W
Current-source heating with 3 ranges
Heating Channel 3 / 4
0.1 W / 0.1 W
Voltage-source heating with 16-bit DAC resolution
Heating Channel 1
100 W
Current-source heating with 3 ranges
Heating Channel 2
0.1 W
Voltage-source heating with 16-bit DAC resolution
Usage & Service Support
Comprehensive user guidance and service support for fast onboarding
Specification
➨ Temperature Readout (Electrically isolated sensor inputs)
1 Measurement Channel
Kelvinion Temperature Controller
8 Independent Measurement Channels
Kelvinion mini Temperature Controller
2 Independent Measurement Channels
2 Temperature Sensors
Classification
Measurement Unit
Resistive
KChip, PT100, PT1000, Ge, Carbon-Glass, Cernox™ and Rox™
Diode
Si, GaAlAs
Thermocouple
All thermocouple types, including J, K, E, T, and S
Ω / V / K / ℃

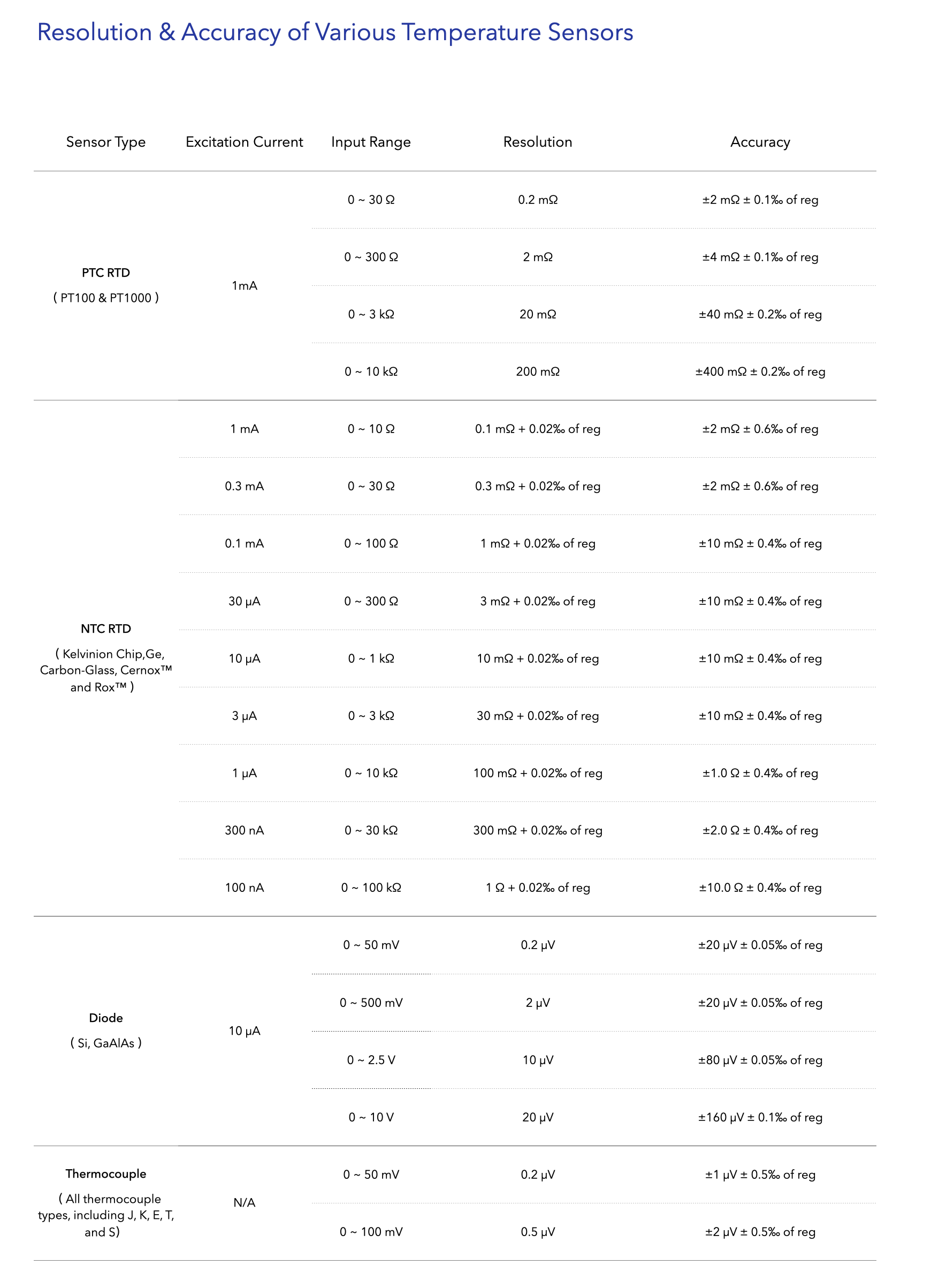

3 Measurement Range
Resistance
(Resistive Thermometer)
Voltage
(Diode & Thermocouple)
Temperate
0.1 mΩ ~ 100 kΩ
100 nV ~ 10 V
0.3 K ~ 1,600 K
(Depends on sensor type)
5 Excitation Type
Resistance
Diode
Thermocouple
Alternating-direction current excitation with constant amplitude
Fixed-amplitude, fixed-direction current excitation
N/A
6 Data Refresh Rate
10 Times/Second
7 Calibration Curve
Storage for 1000 curves (up to 400 points per curve)
➨ Control Mode 1: Built-in Power Source

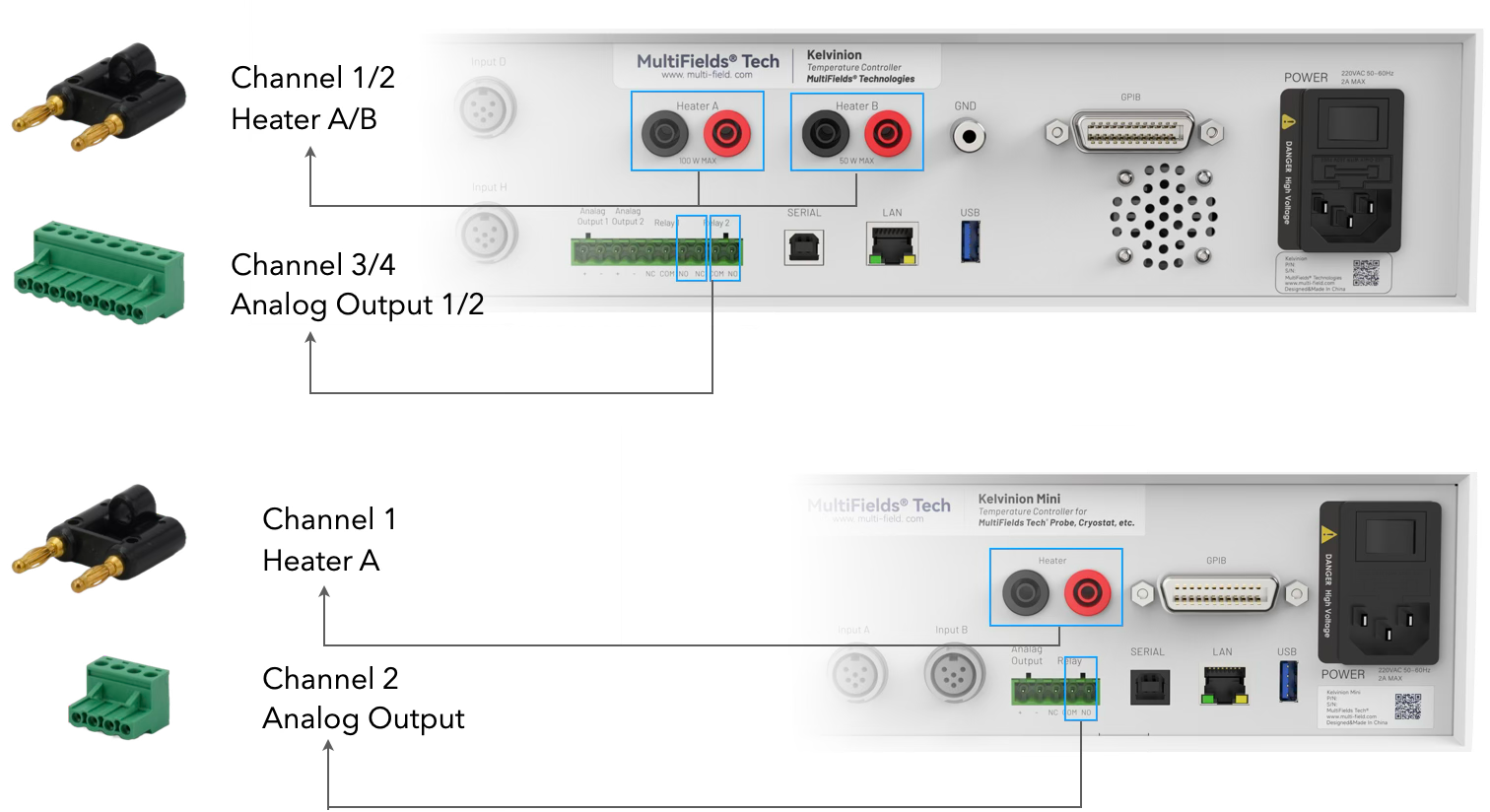

8 Temperature Control Channels
Number of Channels
Power Source Type
Temperature Control Principle
Electrical Connector
Temperature Control Mode
Kelvinion Temperature Controller, 4 Channels
Channel 1 ：Heater A
Channel 2 ：Heater B
Channel 3 ：Analog Output 1
Channel 4 ：Analog Output 2
Kelvinion mini Temperature Controller, 2 Channels
Channel 1：Heater
Channel 2：Analog Output
*Temperature control channels are electrically isolated from the measurement circuitry, share a common ground with the chassis, and should not be shorted to the chassis
Kelvinion Temperature Controller
Channel 1 / Channel 2 / Channel 3 / Channel 4
Adjustable DC Current Source / Adjustable DC Current Source / Adjustable DC Voltage Source / Adjustable DC Voltage Source
Kelvinion mini Temperature Controller
Channel 1 / Channel 2
Adjustable DC Current Source / Adjustable DC Voltage Source
Resistive Heating
Mode 1 – Closed-Loop PID
Built-in PID auto-tuning algorithm
P: -10000 ~ 10000; setting resolution 0.01
I: -10000 ~ 10000; setting resolution 0.01
D: -10000 ~ 10000 %; setting resolution 0.01 %
Mode 2 – Manual Mode
0 ～ 100 % heating power; manually adjustable, resolution 0.01%
9 Digital-to-Analog Conversion
16 bit
10 Heating Power
Maximum Power
Maximum Excitation
Maximum Limiting
Kelvinion Temperature Controller
Channel 1 / Channel 2 / Channel 3 / Channel 4
50 W / 1 W / 1 W / 0.1 W
Kelvinion mini Temperature Controller
Channel 1 / Channel 2
50 W / 0.1 W
Kelvinion Temperature Controller
Channel 1 / Channel 2 / Channel 3 / Channel 4
1.4 A / 1 A / ± 10 V / ± 10 V
Kelvinion mini Temperature Controller
Channel 1 / Channel 2
1 A / ± 10 V
Kelvinion Temperature Controller
Channel 1 / Channel 2 / Channel 3 / Channel 4
50 V / 50 V / ± 0.01 A / ± 0.01 A
Kelvinion mini Temperature Controller
Channel 1 / Channel 2
50 V / ± 0.01 A
11 Heater Resistance
Kelvinion Temperature Controller
Channel 1：10 Ω ~ 100 Ω
Channel 2：10 Ω ~ 100 Ω
Channel 3： > 1000 Ω
Channel 4： > 1000 Ω
Kelvinion mini Temperature Controller
Channel 1：10 Ω ~ 100 Ω
Channel 2： > 1000 Ω
* The above heater resistance values are recommended. Maximum output is achieved within this range, but users may adjust as needed
12 Power Range
Kelvinion Temperature Controller
Channel 1：100 W / 10 W / 1 W
Channel 2：50 W / 5 W / 0.5 W
Channel 3：0.1 W
Channel 4：0.1 W
Kelvinion mini Temperature Controller
Channel 1：100 W / 10 W / 1 W
Channel 2：0.1 W
13 Protection Features
Heater Short-Circuit & Open-Circuit Detection; Over-Temperature Protection
14 Zone Mode
Five temperature zones, each with independent PID and power range settings
15 Temperature Ramp Rate
0.1 K/min ~ 20 K/min
➨ Control Mode 2: Digital Output (External Power Source)
16 Temperature Control Channels
Number of Channels
Reference
Kelvinion Temperature Controller
2 Channels，Relay 1 & Relay 2
Kelvinion mini Temperature Controller
1 Channel，Relay
Max. Voltage: 30 V, Max. Current: 5 A

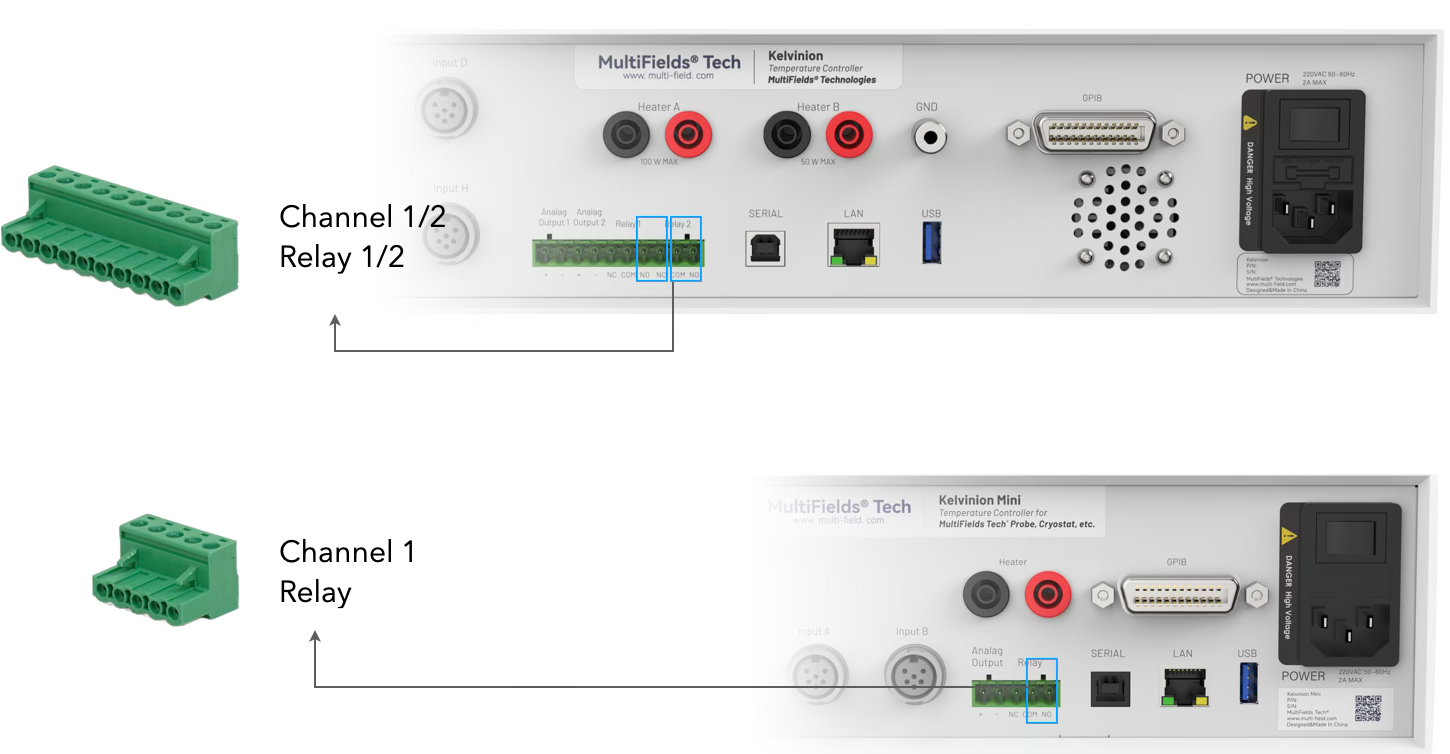

17 Connection Ports
Electrical Connection
Ports
The external power source connects to the Kelvinion & Kelvinion mini, and is routed through them to the heaters of the temperature control system

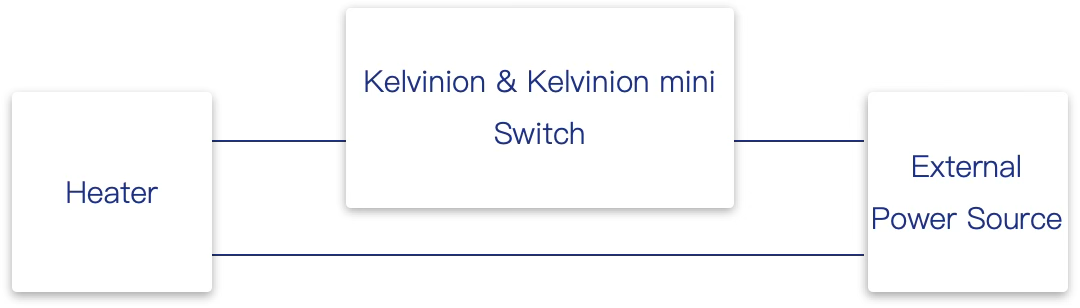

18 Temperature Control
Principle
Working Principle
Wiring Diagram
The external power source operates continuously.
When the temperature exceeds the setpoint, Kelvinion & Kelvinion mini automatically disconnect the external power source from the heater.
When the temperature is below the setpoint, Kelvinion & Kelvinion mini keep the external power source connected to the heater and continue heating.
➨ Installation & Operation

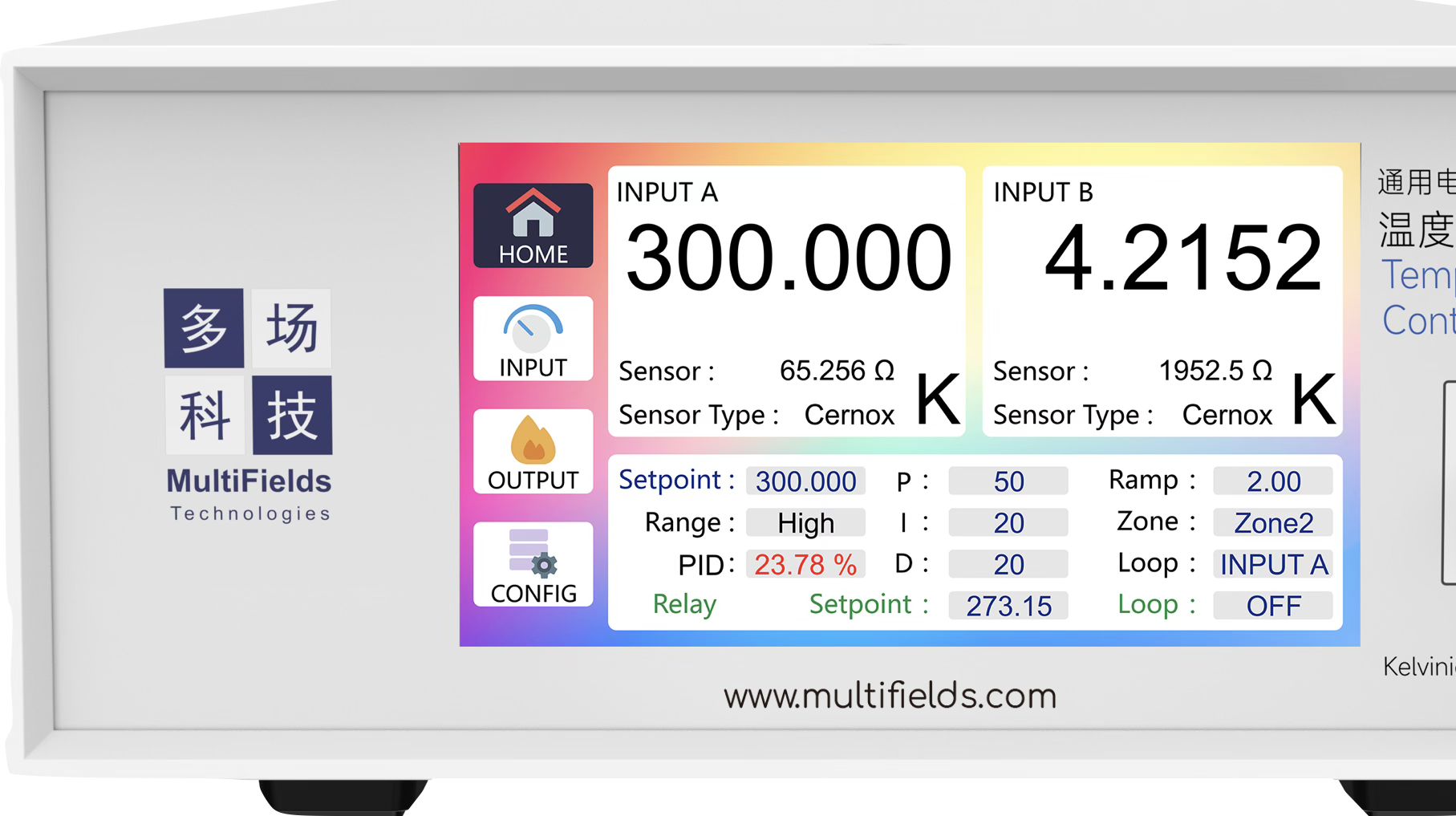

19 Display
5.0-inch Capacitive Touchscreen

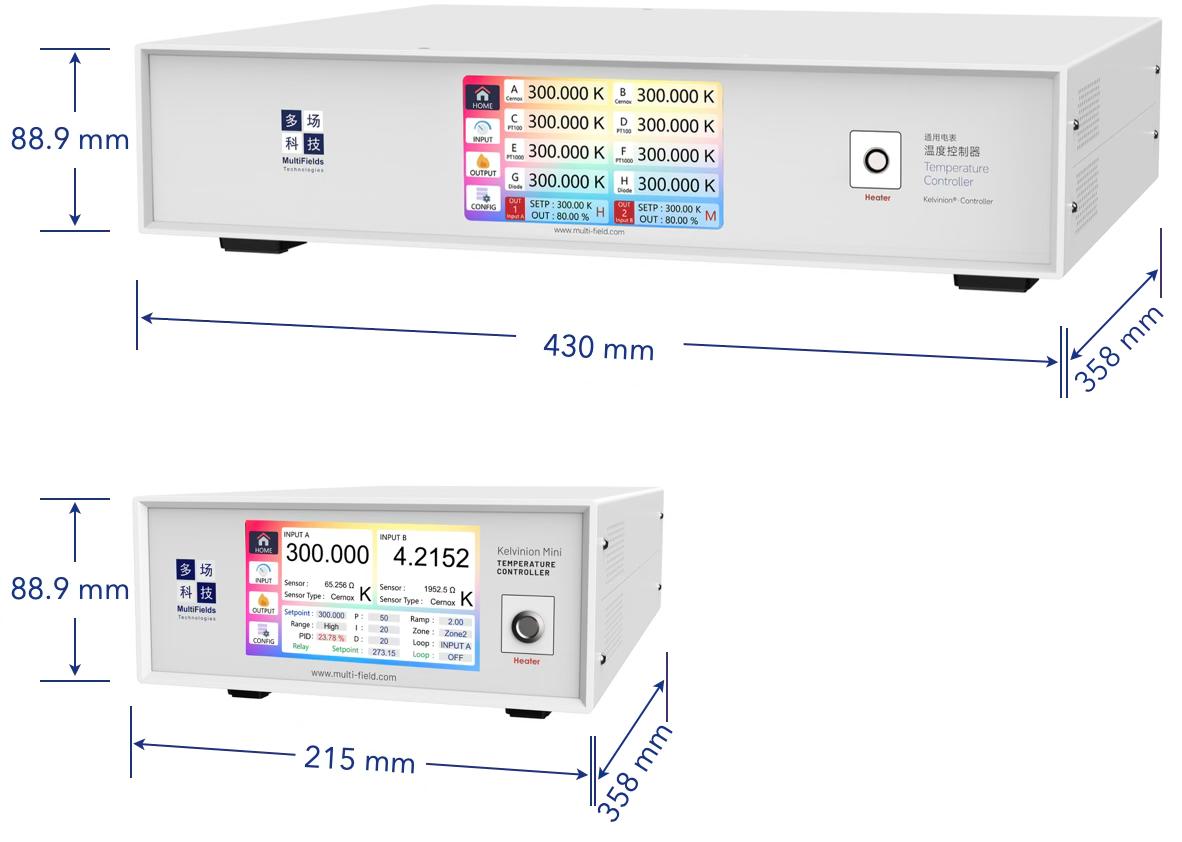

20 Dimensions
2U Standard Rack Height
Kelvinion Temperature Controller
430 mm * 88.9 mm * 358 mm
Kelvinion mini Temperature Controller
215 mm * 88.9 mm * 358 mm
21 Communication Ports
Serial Port，GPIB，LAN
22USB
USB Device Mode
Supports importing/exporting calibration curves via a connected computer; built-in 16 MB storage
USB Host Mode
Supports importing/exporting calibration curves via an external USB drive
Supports firmware upgrades via an external USB drive
23 Safety Protection
Heater Short/Open-Circuit Protection, Over-Temperature Protection, Power Ground Detection
24 Power Source
Power Specs
Max. Power
Heater Short/Open-Circuit Protection, Over-Temperature Protection, Power Ground Detection
Kelvinion mini Temperature Controller
200 W
Kelvinion mini Temperature Controller
150 W
25 Verification
CE, RoHS
