Motion / Piezo Motion Stages · Lab Series
Lab Series
Engineered for All-Around Motion
Full product range covers all six spatial degrees of freedom
35 mm Series
Dimensions
（35 mm x 35 mm x variable thickness）
65 mm Series
Dimensions
（65 mm x 65 mm x variable thickness）
1Motion stages of the same series can be directly interconnected without adapter plates

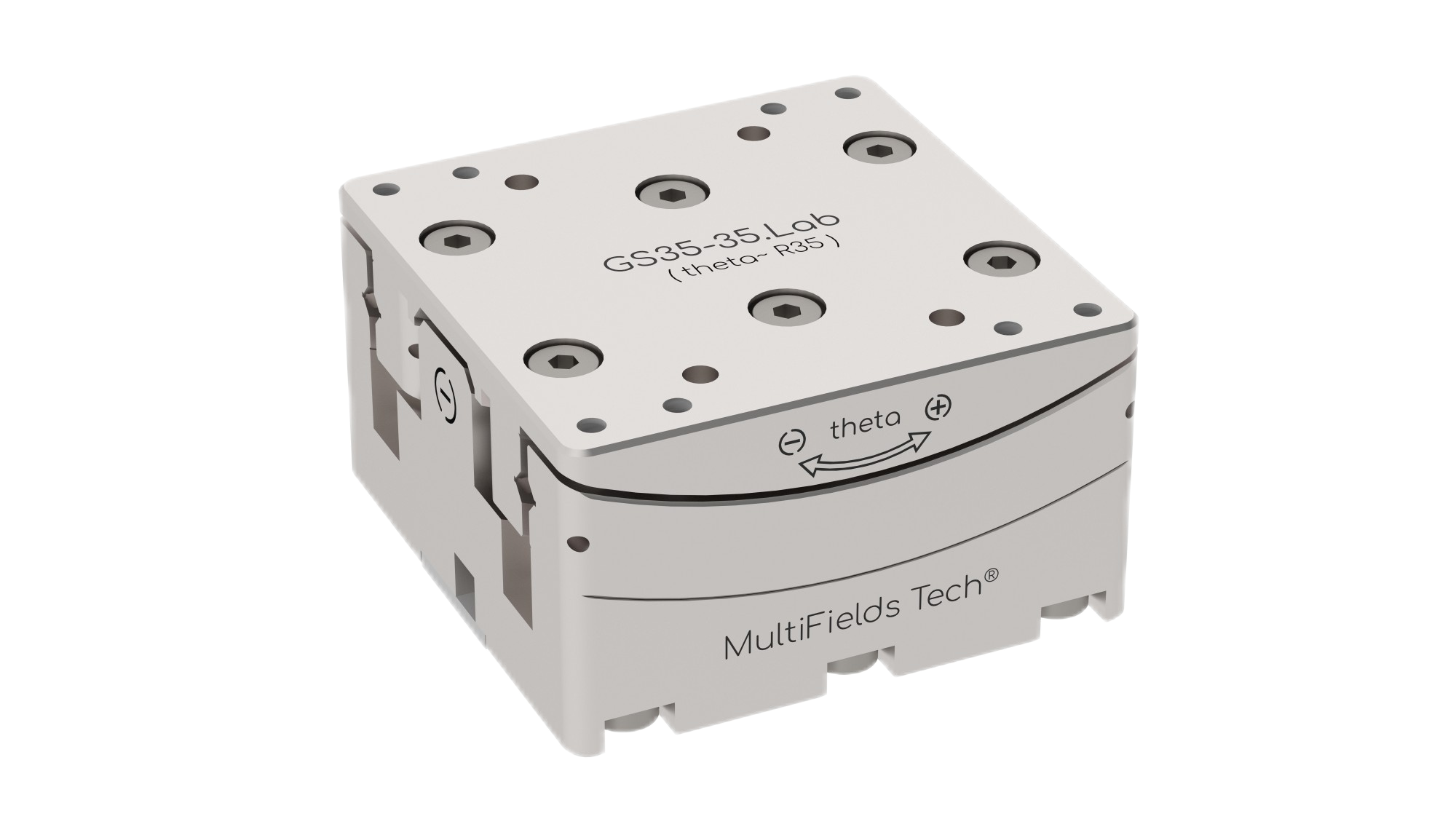

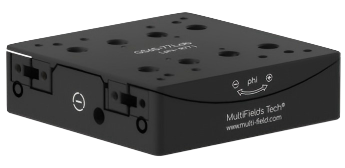

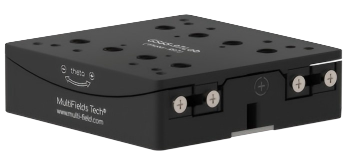

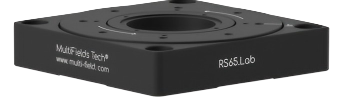

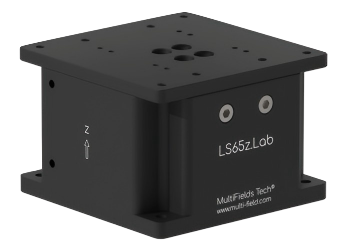

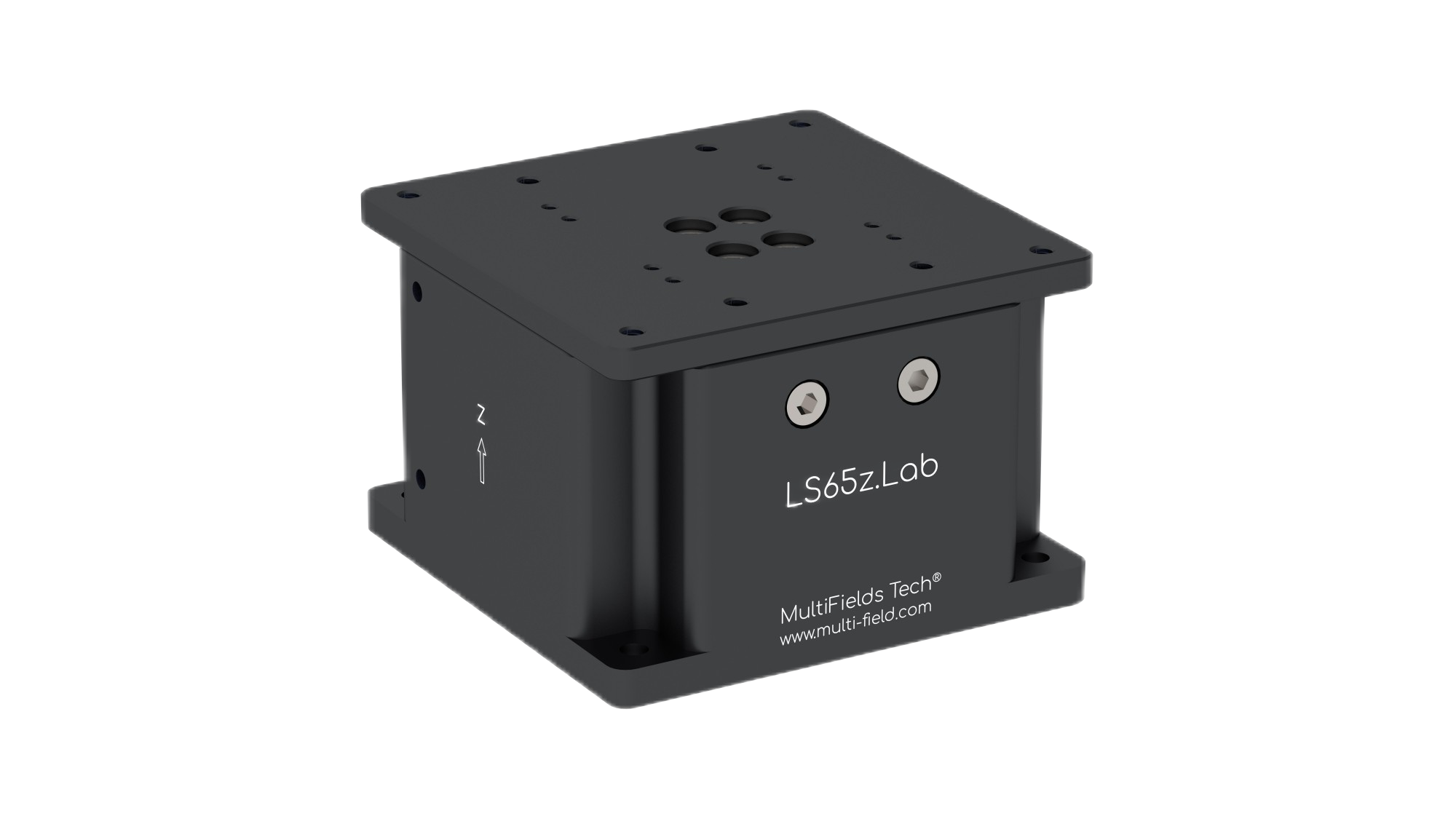

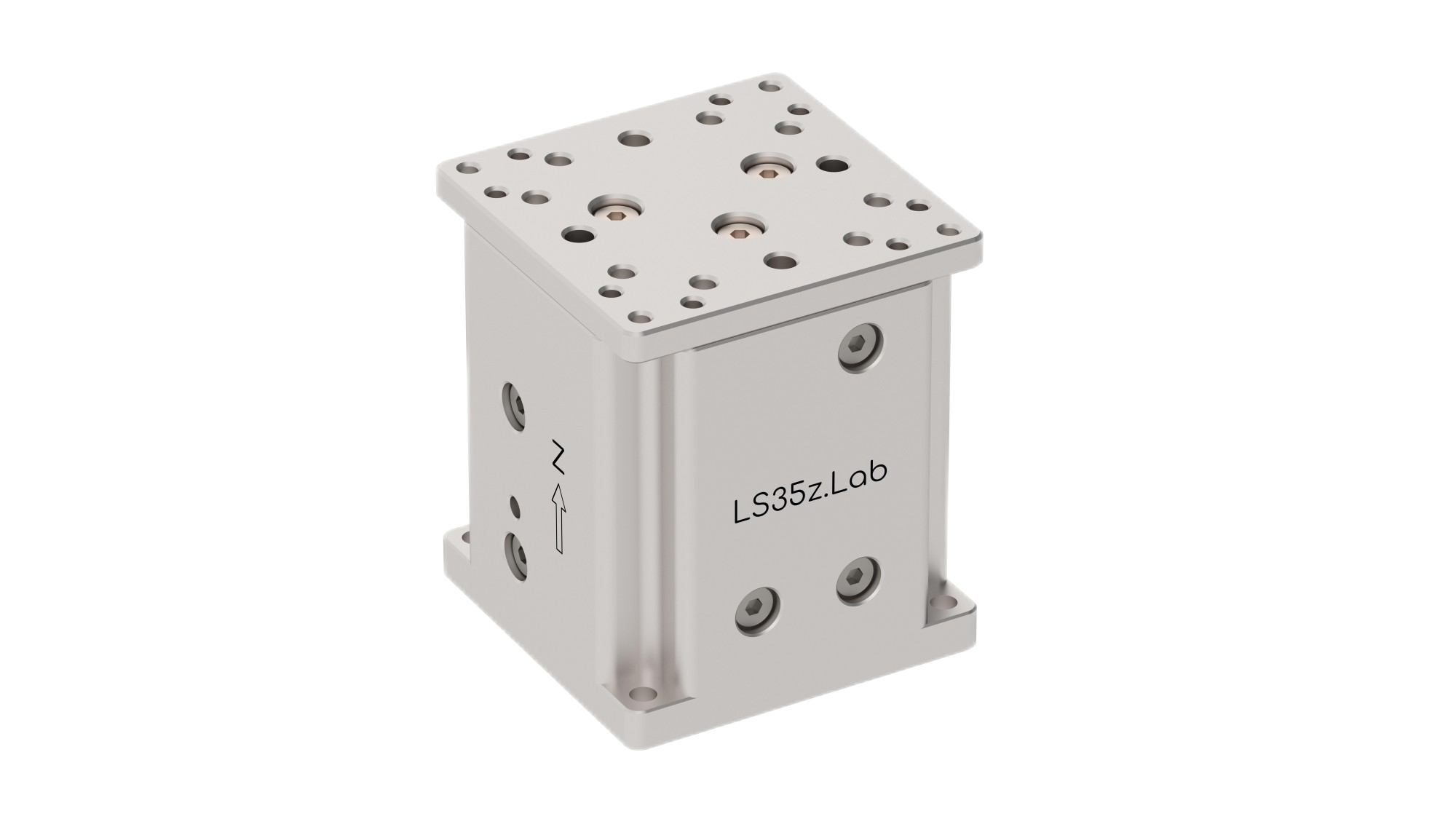

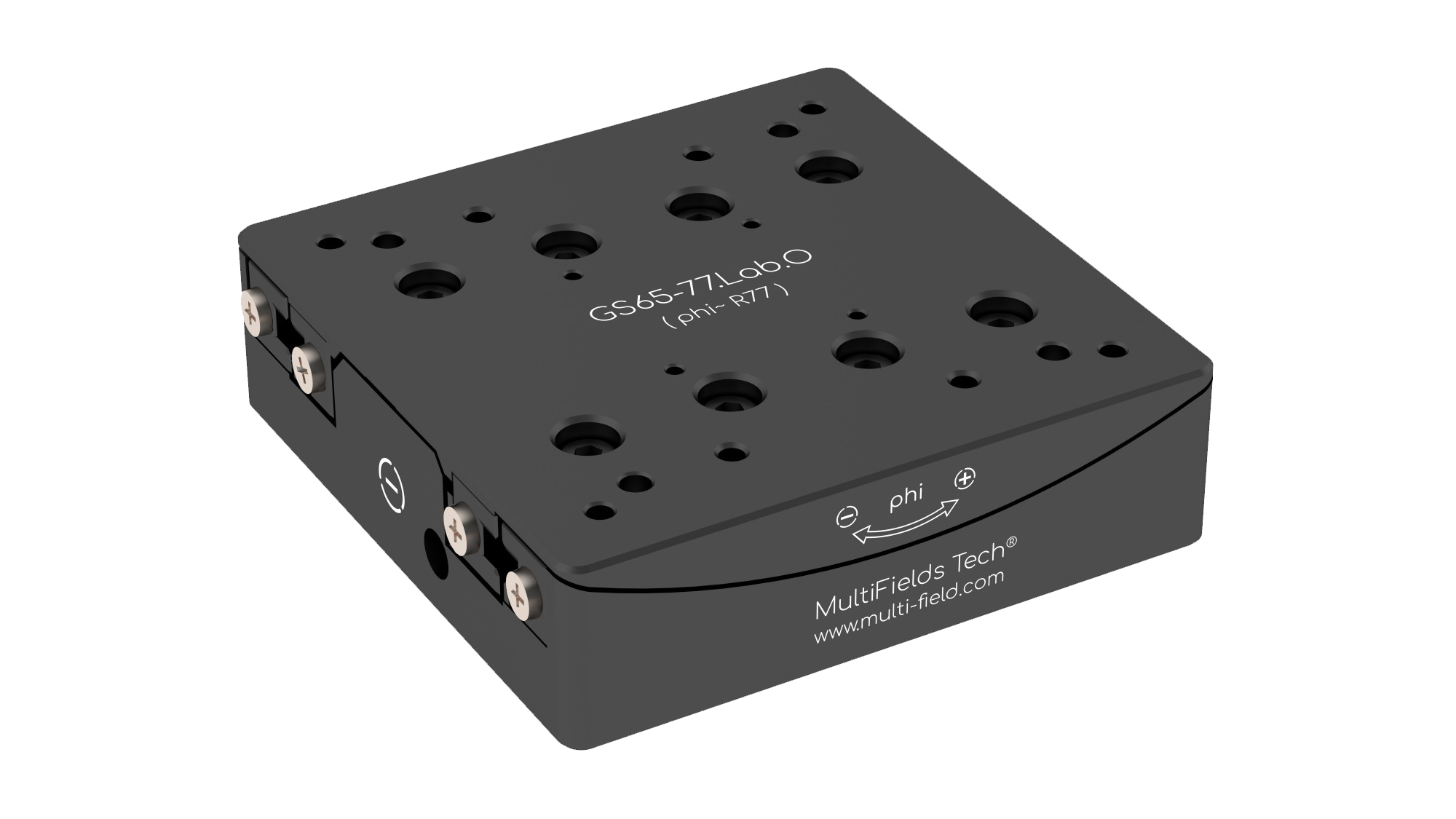

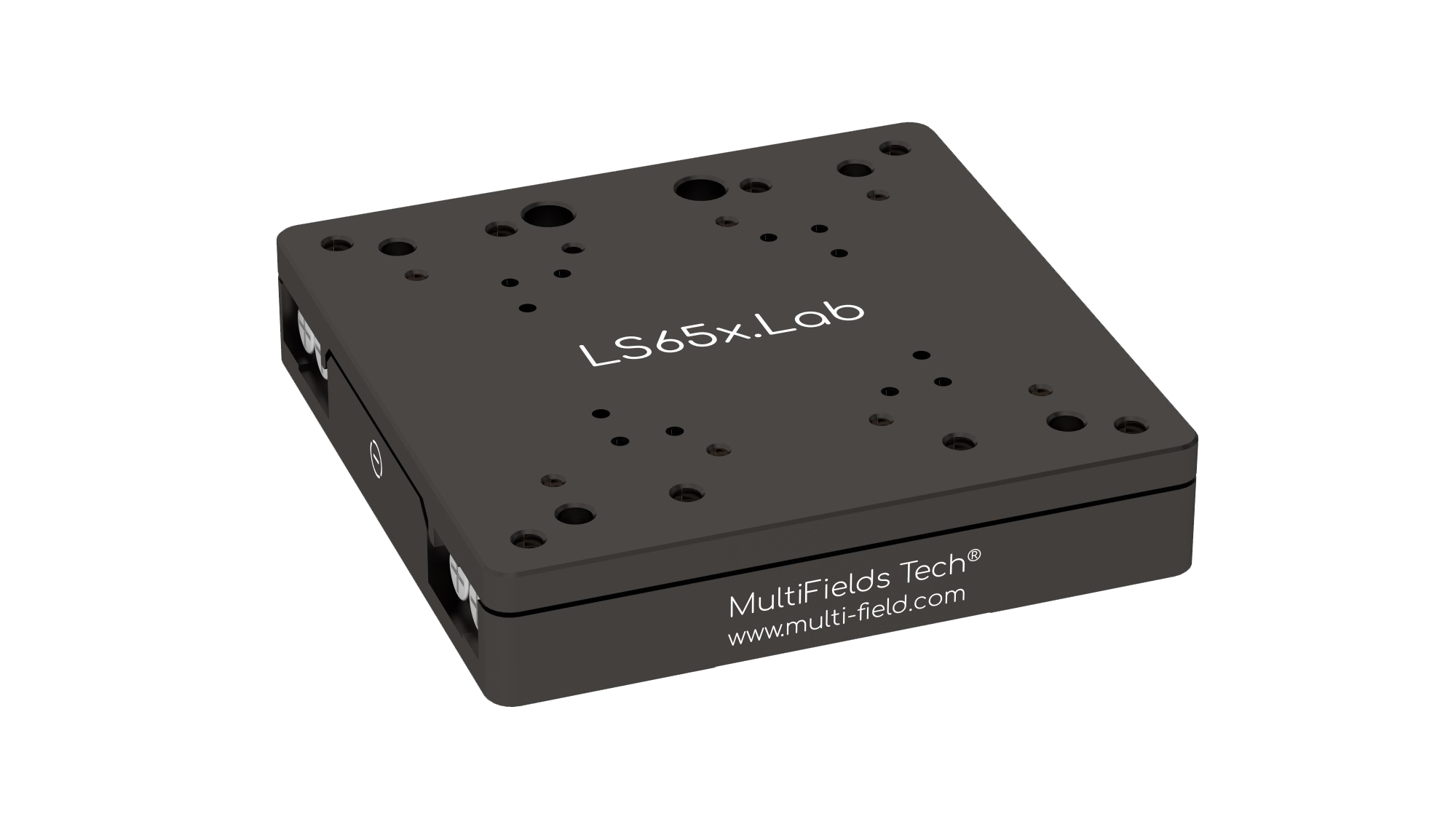

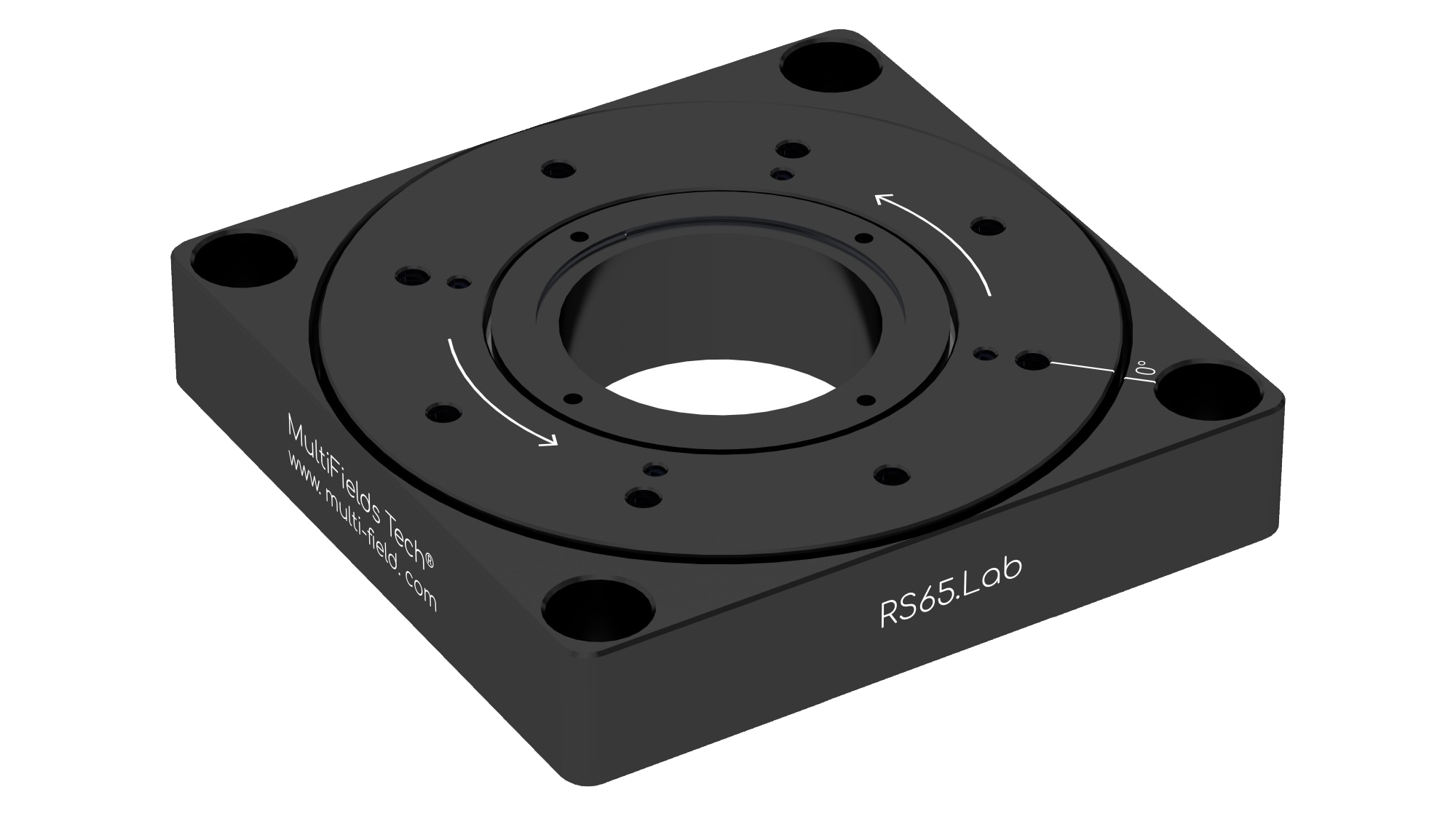

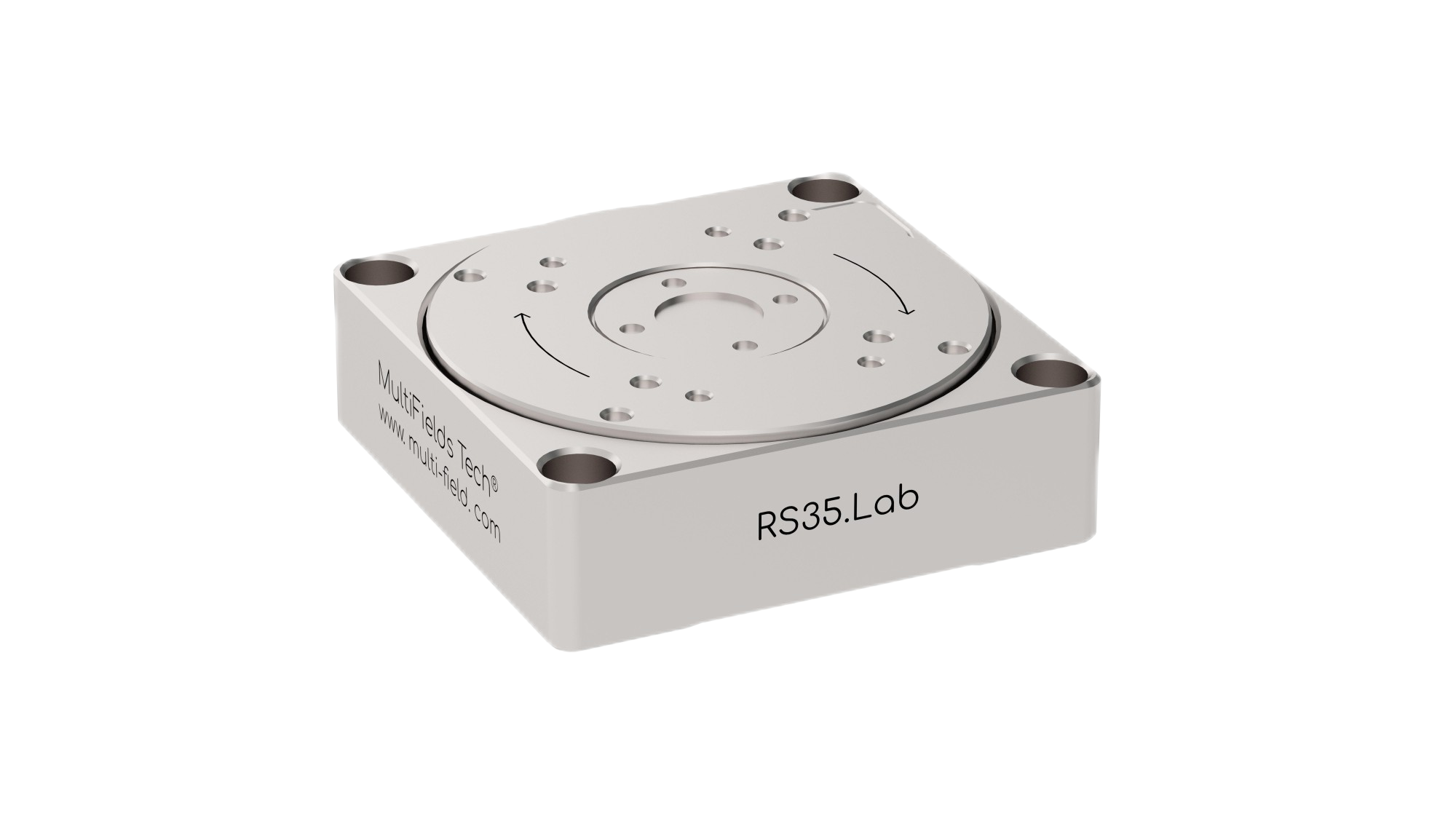

2In this figure, the 35 mm series motion stages from top to bottom are: RS35.Lab, GS35-35.Lab, GS35-55.Lab, LS35z.Lab and LS35x.Lab; the 65 mm series motion stages from top to bottom are: RS65.Lab, GS65-77.Lab, GS65-97.Lab, LS65z.Lab and LS65x.Lab.
Lab Series·Zero-Noise

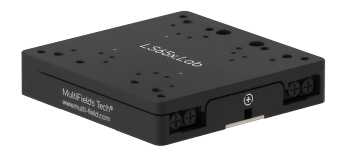

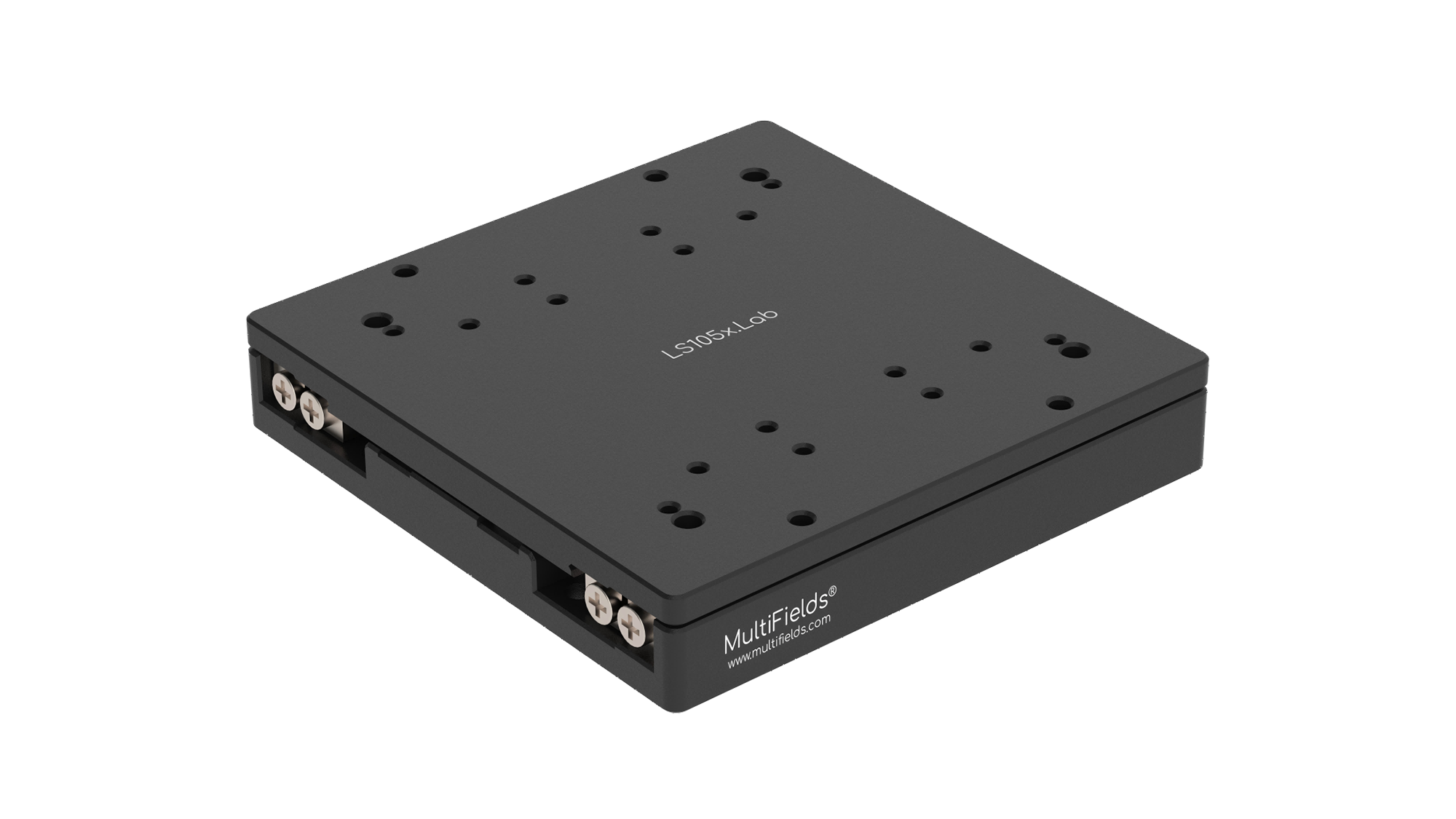

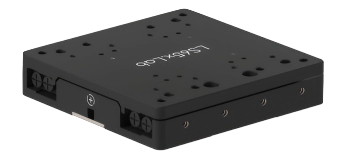

Linear Stages
• Closed-loop control with optical encoder, featuring a MIM of 5 nm (1 nm optional)
• Non-magnetic, with special versions available for UHV and other specialized environments
• Better than 100 nm bi-directional repeatability
• Supports analog signal motion control, Trigger In & Trigger Out
• Supports multiple communication interfaces
Lab Series·Zero-Noise
Vertical Stages
Lab Series·Zero-Noise
Rotation Stages
Lab Series·Zero-Noise
Goniometer Stages
• Closed-loop control with optical encoder, 360° continuous rotation
• Through-hole aperture available
• 1 μrad level minimum increment
• Non-magnetic, with special versions available for UHV and other specialized environments
