Nanopositioning Controller
MC-Archimedes.N
Compatible with S, SD, SH, Carrier.S, Carrier.OB & Mirrors , and Other Nanopositioning Products
Speed Defines the Core of Nanoscale Motion Control
50 kSa/s Closed-Loop Sampling Rate
Compatible with Capacitive, Resistive, and Optical Sensors for
Position Feedback
Default: 10 V
Analog Input Control
TTL 3.3 V
Trigger Signal
Compatibility
Interchangeable within the
Same Series
Advanced Closed-Loop Control
Autofocus, Force Feedback, etc.
The MC-Archimedes series controller is exclusively used with Multifields nanopositioning stages¹and is an integral part of the nanopositioning system. Its technical specifications are incorporated into the specifications of the corresponding products and are therefore not listed separately.
1. Nanopositioning stage product include: S Series, SH Series, SD Series, Carrier-S Series, Carrier-OB Series and Mirror Series.
MC-Archimedes Controller
Host PC Software & SDK
Supports multiple operating systems , including Windows & Linux
Host PC Software
Windows
Motion Center – Archimedes
SDK
EtherNET
USB
Windows
Python
✔
✔
C / C++
✔
✔
C#
✔
✔
Labview
✔
✔
Linux
C / C++
✔
✔

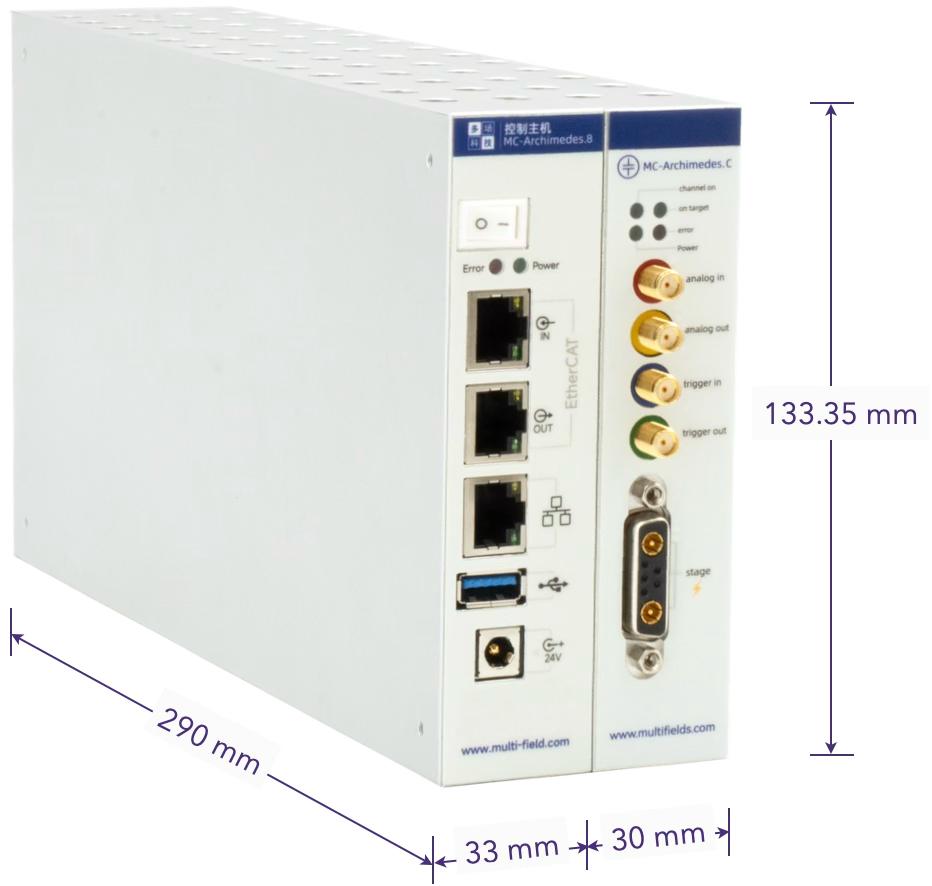

Dimensions
MC-Archimedes.N
290 mm × 33 mm × 133.35 mm
